Isaro

  • Isaro
  • Isaro

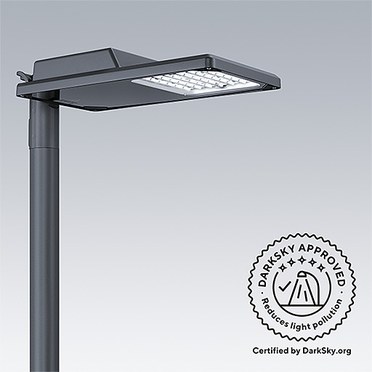

Discrete and flexible road and street lighting lantern with durable high performance

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
  • Designed to maximize lighting performances, optimize circular economy strategies, while limiting its carbon footprint.
  • Reliable and flexible : high quality die-cast aluminium EN AC 44300 casting and Geomet anti-galvanic treated screws combined with vast range of lighting distributions, control, protection, wiring and color options
  • Highest corrosion protection according to EN ISO 9223 : Class 5
  • Light weight, pre-wired to the needs for easy installation

Materials and Finish

Housing, spigot: die-cast aluminium EN AC 44300, screws treated with Geomet anti-galvanic coating, powder coated texturized light grey (GY), Spigot painted. Via the configurator: Texturized black (BK), Texturized anthracite (ANT) and 48 other RAL possibilities. Standard corrosion class C5 according to ISO 9223: 2012.
Glass: Toughened glass, 4 or 5 mm thickness
Fixings: stainless steel, with geomet treatment

Installation and Mounting

Installation up to 15 m height
• Versatile tilting technology, lateral (-15°/+15°) and post top (0°/+20°)
• Adjustable inclination by increments of 5° to optimize lighting distribution and uniformity
• Universal spigot for lateral and post top installation
• As a standard: possible coastal application thanks to its C5 corrosion protection class (ISO 9223:2012)
• Pre-wired for ease of installation at any pole height. Option with IP67 quick connector if pole cable is retained (refurbishment)

Specification

To specify state:
IP66, 2 sizes, corrosion resistant Class 5 (EN ISO 9223) road lighting lantern with great versatility for even coastal applications. With up to 6000 Llm (Extra Small size) and 17000 Lm (Small size), efficiency up to 170 Llm/W. Optimised dimensions, low windage area : 0,028 m² (XS size) and 0,041 m² (S size). Extra White toughened glass underneath (4mm thickness as standard). Option for High Transmission glass (H). IK possibilities : IK08 and IK10 (option). Electrical class 1 and class 2. Mounting options : post top, lateral. Wide optical offer with efficient Street R-PEC optical system, 20 R-PEC light distributions. 2200 K / 2400 K / 2700 K / 3000 K /4000 K / 5700 K colour temperatures, as standard. CRI 70 or 80. Internal back light control louvre.6 kV multi-pulse and 8 kV (3 pulses) as driver standard protection. Option for 10kV/10kA surge protection multi pulse and 20kV single pulse. Option for LED optic lining (M). Post top reversible spigot pre-assembled for diameter 60mm or 76mm post top mounting and diameter 60mm or 42 mm lateral mounting. Tilting possibilities for lateral (-20°/0°) and for post top (0°/+15°). A large choice of colour painting as standard : Texturized light grey (GY) by default - Texturized black (BK), Texturized anthracite (ANT), 48 other RAL possibilities. Pre-wired according to needs through configurator with lengths of cable from 3 to 16m. Option with quick connector IP67 M/F for refurbishment with existing cables retained.
DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO)/Light Reduction Twin Phases (LRT). Zhaga interface Up (ZU) / N7 Integral Nema socket - 7 pin, both ZD4i certified.
As Thorn Isaro

New Product
LumExpress Product
eControl Product

Isaro

Isaro Small, Narrow road optic
