Urba
For sophistication and comfort in urban life

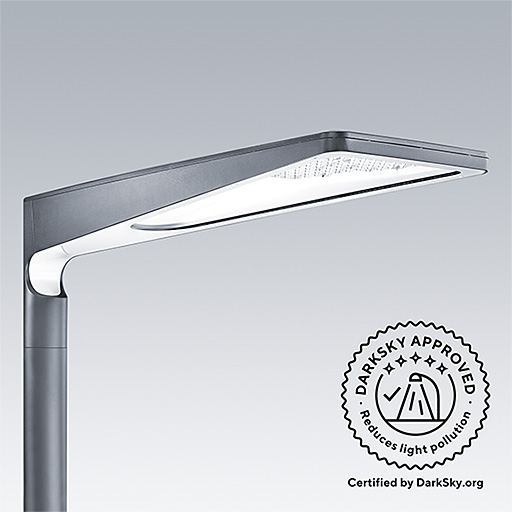

- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
- Exclusively designed for Thorn by world renowned architects, city planners and designers Wilmotte & Industries
- Unique signature at day and night thanks to an optical system designed with special care for comfort (G6)
- Outstanding versatility: 9 optics, 2 sizes, 3 mounting options to fulfill a wide scope of projects
- Part of the URBA family with Urba Deco and Urba bollard
- Future proof with Zhaga interface
Materials and Finish
URBA S body: high quality die cast aluminium EN-AC 44300 with zink flake coated screws. Best resistant against corrosion and compatible with seaside environment without additional coating. Standard corrosion class C5 according to ISO 9223: 2012. URBA L body: die cast aluminium (EN AC-46000) and zink flake coated screws.
Anthracite grey textured finish (close to RAL 7043)
Glass: tempered flat glass or dichroic flat glass (5mm). Prismatic glass on request
Frame: aluminium - powder polycarbonate, metallised aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)
Standard corrosion class: C3.
Brackets with coordinated columns:
Painted galvanised steel, anthracite grey or black textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium,anthracite grey or black textured finish
Installation and Mounting
Luminaire: Supplied complete and ready to install, in a single box. Post-top mounting Ø60mm or Ø76mm, spigot length 100mm pre-wired with 8m (Small) or 10m (Large) H07RN-F cable. Side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°
Brackets with coordinated columns. Mounting heights for Urba small: 4 to 6m, for Urba Large: 6 to 8m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200x200mm. Galvanised steel columns with flange mountings: 300x300mm
Specification
To specify Urba luminaire state:
Highly designed urban street lantern with 2 sizes, 7 mounting options, 3 enclosures, 9 light distributions with 2 dedicated optics to comfort (G6). Highly efficient with R-PEC optic. Side entry and post top mountings, 60mm and 76mm diameters, with tilt adjustments. Zhaga up (ZU) interface. Wide range of intelligent lighting control solutions from stand alone dimming to remote control.
As Thorn Urba
To specify Urba brackets and columns state:
Wide range of coordinated short and long galvanised steel brackets, diameter 76mm top. Cylindrical conical galvanised steel columns up to 8m. Anthracite grey textured finish. 2 diameter aluminium cylindrical conical columns up to 6m.
As Thorn Urba brackets and columns
▼ Urba S RWET
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA S 36L70 RWET ANT BP CL1 MLE L740 | 77 | 10762 | LED | 10.50 | 96269786 |
▼ Urba S NR
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA S 24L35 NR ANT BP CL1 8M MTP76 L740 | 28 | 3810 | LED | 10.50 | 96269824 | ||||
URBA S 24L35 NR ANT BP CL1 MLE L740 | 28 | 3810 | LED | 10.50 | 96269769 | ||||
URBA S 24L50 NR ANT BP CL1 8M MTP76 L740 | 38 | 5239 | LED | 10.50 | 96269827 | ||||
URBA S 24L50 NR ANT BP CL1 MLE L740 | 38 | 5239 | LED | 10.50 | 96269772 | ||||
URBA S 24L70 NR ANT BP CL1 8M MTP76 L740 | 53 | 7015 | LED | 10.50 | 96269830 | ||||
URBA S 24L70 NR ANT BP CL1 MLE L740 | 53 | 7015 | LED | 10.50 | 96269775 | ||||
URBA S 36L35 NR ANT BP CL1 8M MTP76 L740 | 39 | 5694 | LED | 10.50 | 96269825 | ||||
URBA S 36L35 NR ANT BP CL1 MLE L740 | 39 | 5694 | LED | 10.50 | 96269770 | ||||
URBA S 36L50 NR ANT BP CL1 8M MTP76 L740 | 55 | 7808 | LED | 10.50 | 96269828 | ||||
URBA S 36L50 NR ANT BP CL1 MLE L740 | 55 | 7808 | LED | 10.50 | 96269773 | ||||
URBA S 36L70 NR ANT BP CL1 8M MTP76 L740 | 77 | 10403 | LED | 10.50 | 96269831 | ||||
URBA S 36L70 NR ANT BP CL1 MLE L740 | 77 | 10403 | LED | 10.50 | 96269776 | ||||
URBA S 36L70 NR ANT CL1 MLE L740 | 77 | 10403 | LED | 10.50 | 96269850 |
▼ Urba S WR
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA S 24L35 WR ANT BP CL1 8M MTP76 L740 | 28 | 3855 | LED | 10.50 | 96269833 | ||||
URBA S 24L35 WR ANT BP CL1 MLE L740 | 28 | 3855 | LED | 10.50 | 96269778 | ||||
URBA S 24L50 WR ANT BP CL1 8M MTP76 L740 | 38 | 5302 | LED | 10.50 | 96269836 | ||||
URBA S 24L50 WR ANT BP CL1 MLE L740 | 38 | 5302 | LED | 10.50 | 96269781 | ||||
URBA S 24L70 WR ANT BP CL1 8M MTP76 L740 | 53 | 7099 | LED | 10.50 | 96269839 | ||||
URBA S 24L70 WR ANT BP CL1 MLE L740 | 53 | 7099 | LED | 10.50 | 96269784 | ||||
URBA S 36L35 WR ANT BP CL1 8M MTP76 L740 | 39 | 5761 | LED | 10.50 | 96269834 | ||||
URBA S 36L35 WR ANT BP CL1 MLE L740 | 39 | 5761 | LED | 10.50 | 96269779 | ||||
URBA S 36L50 WR ANT BP CL1 8M MTP76 L740 | 55 | 7901 | LED | 10.50 | 96269837 | ||||
URBA S 36L50 WR ANT BP CL1 MLE L740 | 55 | 7901 | LED | 10.50 | 96269782 | ||||
URBA S 36L70 WR ANT BP CL1 8M MTP76 L740 | 77 | 10527 | LED | 10.50 | 96269840 | ||||
URBA S 36L70 WR ANT BP CL1 MLE L740 | 77 | 10527 | LED | 10.50 | 96269785 |
▼ Urba S WSC
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA S 24L35 WSC ANT BP CL1 8M MTP76 740 | 28 | 3737 | LED | 10.50 | 96269842 | ||||
URBA S 24L35 WSC ANT BP CL1 MLE L740 | 28 | 3737 | LED | 10.50 | 96269788 | ||||
URBA S 24L50 WSC ANT BP CL1 8M MTP76 740 | 38 | 5139 | LED | 10.50 | 96269845 | ||||
URBA S 24L50 WSC ANT BP CL1 MLE L740 | 38 | 5139 | LED | 10.50 | 96269791 | ||||
URBA S 24L70 WSC ANT BP CL1 8M MTP76 740 | 53 | 6881 | LED | 10.50 | 96269848 | ||||
URBA S 24L70 WSC ANT BP CL1 MLE L740 | 53 | 6881 | LED | 10.50 | 96269794 | ||||
URBA S 36L35 WSC ANT BP CL1 8M MTP76 740 | 39 | 5585 | LED | 10.50 | 96269843 | ||||
URBA S 36L35 WSC ANT BP CL1 MLE L740 | 39 | 5585 | LED | 10.50 | 96269789 | ||||
URBA S 36L50 WSC ANT BP CL1 8M MTP76 740 | 55 | 7659 | LED | 10.50 | 96269846 | ||||
URBA S 36L50 WSC ANT BP CL1 MLE L740 | 55 | 7659 | LED | 10.50 | 96269792 | ||||
URBA S 36L70 WSC ANT BP CL1 8M MTP76 740 | 77 | 10205 | LED | 10.50 | 96269849 | ||||
URBA S 36L70 WSC ANT BP CL1 MLE L740 | 77 | 10205 | LED | 10.50 | 96269795 |
▼ Urba S SC
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA S 24L35 SC ANT BP CL1 MLE L740 | 28 | 3901 | LED | 10.50 | 96269797 | ||||
URBA S 24L50 SC ANT BP CL1 MLE L740 | 38 | 5364 | LED | 10.50 | 96269800 | ||||
URBA S 24L70 SC ANT BP CL1 MLE L740 | 53 | 7182 | LED | 10.50 | 96269803 | ||||
URBA S 36L35 SC ANT BP CL1 8M MTP76 740 | 39 | 5829 | LED | 10.50 | 96270862 | ||||
URBA S 36L35 SC ANT BP CL1 MLE L740 | 39 | 5829 | LED | 10.50 | 96269798 | ||||
URBA S 36L35 SC BK BP CL1 8M MTP76 740 | 39 | 4475 | LED | 10.50 | 96270860 | ||||
URBA S 36L50 SC ANT BP CL1 MLE L740 | 55 | 7994 | LED | 10.50 | 96269801 | ||||
URBA S 36L70 SC ANT BP CL1 MLE L740 | 77 | 10651 | LED | 10.50 | 96269804 |
▼ Urba L RC
▼ Urba L NR
▼ Urba L WSC
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
URBA L 72L50 740 WSC BP CL1 L60D ANT | 109 | 15229 | LED | 16.00 | 96270011 |
