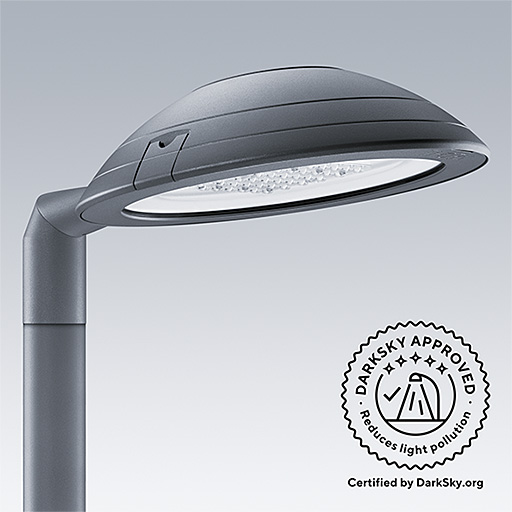

Thor
An LED smart urban lantern providing high user comfort and easy integration of connectivity and sensors into city environments
- High lighting quality creates a comfortable ambience
- Designed around the high performance R-PEC light engine, ensuring an excellent balance between performance and comfort
- Wide choice of control options with a discreet RF variant
- Flexible mounting options extend the scope of application
Materials and Finish
Dome, 2 options: Thor L, UV stabilized polycarbonate with dark sandy grey finish, close to RAL7043 or with opal finish. Thor S, UV stabilized polycarbonate with opal finish, or die-cast aluminium with dark sandy grey finish.
Glass: toughened flat glass
Bracket: die cast aluminium treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Body: die cast aluminium treated against corrosion and powder coated dark sandy grey finish (close to RAL7043) (EN AC-47100 + CAT). Standard corrosion class C5 according to ISO 9223: 2012.
Reflector: ABS white with UV treatment
Screws and closing set: Stainless steel
Installation and Mounting
Recommended mounting height: up to 8m. All post top and side entry versions are pre-wired. Supplied complete and ready to install, in a single box. Suitable for both post top and side entry mounting Ø60mm as standard. Side mounting: Ø60mm x 100mm long spigot, tilting -15° max, secured by 2 screws, delivered tilted at 0° by default. Top mounting: Ø60mm spigot, tilting +10° max, secured by 2 stainless steel screws, delivered tilted at 0° by default. Optimised with R-PEC optics for good control and performance. Catenary and suspended versions fixed through 27G, and 34G. Ø48 mm lateral and post top versions (external Ø60mm, internal Ø48mm), available on request.
Specification
To specify state:
IP66 durable urban LED lantern with full dome or opal dome. Luminaire flux up to 13 500 Llm. Efficiency up to 134 Llm/W. Ø60mm side entry, and post top mountings, as standard. Tilting from -15° to +10°. R-PEC optics. CLO, bi-power, DALI and Radio Frequency (RF) as standard. Ø48mm lateral, Ø48mm post top mountings, catenary and suspended versions (on request for Thor L). Compatible with a wide range of intelligent lighting controls.
As Thorn Thor.
▼ Thor S, Post top mounting, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 12L25 740 NR BPS HFX CL1 FD T60E ANT | 12 | 1532 | LED | 10.60 | 96632111 | ||||
TR 12L35-740 NR BPS HFX CL1 FD T60E | 15 | 2076 | LED | 10.60 | 96632112 | ||||
TR 12L50-740 NR BPS HFX CL1 FD T60E | 21 | 2857 | LED | 10.60 | 96632113 | ||||
TR 12L70-740 NR BPS HFX CL1 FD T60E | 28 | 3832 | LED | 10.60 | 96632114 | ||||
TR 24L35-740 NR BPS HFX CL1 FD T60E | 28 | 4139 | LED | 10.60 | 96632115 | ||||
TR 24L50-740 NR BPS HFX CL1 FD T60E | 38 | 5684 | LED | 10.60 | 96632116 | ||||
TR 24L70-740 NR BPS HFX CL1 FD T60E | 52 | 7592 | LED | 10.60 | 96632117 | ||||
TR 36L35-740 NR BPS HFX CL1 FD T60E | 39 | 6178 | LED | 10.60 | 96632119 | ||||
TR 36L50-740 NR BPS HFX CL1 FD W6 T60E | 55 | 8454 | LED | 10.60 | 96665250 | ||||
TR 36L50-740 NR BSP HFX CL1 FD T60E | 55 | 8454 | LED | 10.60 | 96632120 | ||||
TR 36L70-740 NR BPS HFX CL1 FD T60E | 77 | 11218 | LED | 10.60 | 96632121 | ||||
TR 36L70-740 NR BPS HFX CL1 FD W6 T60E | 77 | 11218 | LED | 10.60 | 96665265 |
▼ Thor S, Post top mounting, opal dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 36L50-740 NR BPS HFX CL1 OP W6 T60E | 61 | 8454 | LED | 10.60 | 96665251 | ||||
TR 36L70-740 NR BPS HFX CL1 OP W6 T60E | 83 | 11218 | LED | 10.60 | 96665266 |
▼ Thor S, Lateral mounting, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 36L50-740 NR BPS HFX CL1 FD W6 L60E | 55 | 8454 | LED | 10.00 | 96665291 | ||||
TR 36L70-740 NR BPS HFX CL1 FD W6 L60E | 77 | 11218 | LED | 10.00 | 96665305 |
▼ Thor S, Lateral mounting, opal dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 36L70-740 NR BPS HFX CL1 OP W6 L60E | 83 | 11218 | LED | 10.60 | 96665306 |
▼ Thor S, Suspended, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 36L50-740 NR BPS HFX CL1 FD MSU27GF | 55 | 8454 | LED | 8.20 | 96628513 | ||||
TR 36L50-740 NR BPS HFX CL1 FD MSU34GM | 55 | 8454 | LED | 8.20 | 96665322 | ||||
TR 36L70-740 NR BPS HFX CL1 FD MSU27GF | 77 | 11218 | LED | 8.20 | 96628518 | ||||
TR 36L70-740 NR BPS HFX CL1 FD MSU34GM | 77 | 11218 | LED | 8.20 | 96665332 |
▼ Thor S, Catenary mounting, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 24L105-740 NR-S BPS CL1 FD MCA | 79 | 10183 | LED | 8.60 | 96632118 | ||||
TR 24L70-740 NR-S BPS CL1 FD MCA | 52 | 7592 | LED | 8.60 | 96665346 |
▼ Thor S, Catenary mounting, full dome, wide street optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 24L105-740 WS-S BPS CL1 FD MCA | 79 | 10114 | LED | 8.60 | 96665355 |
▼ Thor L, Post top mounting, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 NR BP CL1 FD W9 T60E | 73 | 8860 | TRLP48L50B8NR3KD | LED | 13.90 | 96643940 | ||||
TR 48L50-740 NR BP CL1 FD W9 T60E | 73 | 10561 | TRLP48L50B8NR4KD | LED | 13.90 | 96643938 | ||||
TR 72L50-730 NR BP CL1 FD W9 T60E | 109 | 14398 | TRLP72L50B8NR3KD | LED | 14.80 | 96643950 | ||||
TR 72L50-740 NR BP CL1 FD W9 T60E | 109 | 15597 | TRLP72L50B8NR4KD | LED | 14.80 | 96643948 |
▼ Thor L, Post top mounting, full dome, street comfort optic
Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 SC BP CL1 FD W9 T60E | 73 | 9826 | TRLP48L50B8SC3KD | LED | 13.90 | 96643941 | ||||
TR 48L50-740 SC BP CL1 FD W9 T60E | 73 | 10644 | TRLP48L50B8SC4KD | LED | 13.90 | 96643939 | ||||
TR 72L50-730 SC BP CL1 FD W9 T60E | 109 | 14511 | TRLP72L50B8SC3KD | LED | 14.80 | 96643951 | ||||
TR 72L50-740 SC BP CL1 FD W9 T60E | 109 | 15720 | TRLP72L50B8SC4KD | LED | 14.80 | 96643949 |
▼ Thor L, Post top mounting, opal dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 NR BP CL1 OP W9 T60E | 79 | 8860 | LED | 14.20 | 96643900 | ||||
TR 48L50-740 NR BP CL1 OP W9 T60E | 79 | 10561 | LED | 14.20 | 96643898 | ||||
TR 72L50-730 NR BP CL1 OP W9 T60E | 115 | 14398 | LED | 14.60 | 96643910 | ||||
TR 72L50-740 NR BP CL1 OP W9 T60E | 115 | 15597 | LED | 14.60 | 96643908 |
▼ Thor L, Post top mounting, opal dome, street comfort optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 SC BP CL1 OP W9 T60E | 79 | 9826 | LED | 14.20 | 96643901 | ||||
TR 48L50-740 SC BP CL1 OP W9 T60E | 79 | 10644 | LED | 14.20 | 96643899 | ||||
TR 72L50-730 SC BP CL1 OP W9 T60E | 115 | 14511 | LED | 14.60 | 96643911 | ||||
TR 72L50-740 SC BP CL1 OP W9 T60E | 115 | 15720 | LED | 14.60 | 96643909 |
▼ Thor L, Lateral mounting, full dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 NR BP CL1 FD W9 L60E | 73 | 8860 | TRLS48L50B8NR3KD | LED | 13.90 | 96643960 | ||||
TR 48L50-740 NR BP CL1 FD W9 L60E | 73 | 10561 | TRLS48L50B8NR4KD | LED | 13.90 | 96643958 | ||||
TR 48L50-740 NR BP CL1 PM FD W9 L60E | 73 | 10561 | TRLS48L50B8MNR4KD | LED | 13.90 | 96643972 | ||||
TR 72L50-730 NR BP CL1 FD W9 L60E | 109 | 14398 | TRLS72L50B8NR3KD | LED | 14.80 | 96643970 | ||||
TR 72L50-740 NR BP CL1 FD W9 L60E | 109 | 15597 | TRLS72L50B8NR4KD | LED | 14.80 | 96643968 |
▼ Thor L, Lateral mounting, full dome, street comfort optic
Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 SC BP CL1 FD W9 L60E | 73 | 9826 | TRLS48L50B8SC3KD | LED | 13.90 | 96643961 | ||||
TR 48L50-740 SC BP CL1 FD W9 L60E | 73 | 10644 | TRLS48L50B8SC4KD | LED | 13.90 | 96643959 | ||||
TR 72L50-730 SC BP CL1 FD W9 L60E | 109 | 14511 | TRLS72L50B8SC3KD | LED | 14.80 | 96643971 | ||||
TR 72L50-740 SC BP CL1 FD W9 L60E | 109 | 15720 | TRLS72L50B8SC4KD | LED | 14.80 | 96643969 |
▼ Thor L, Lateral mounting, opal dome, narrow road optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 NR BP CL1 OP W9 L60E | 79 | 8860 | LED | 14.20 | 96643920 | ||||
TR 48L50-740 NR BP CL1 OP W9 L60E | 79 | 10561 | LED | 14.20 | 96643918 | ||||
TR 72L50-730 NR BP CL1 OP W9 L60E | 115 | 14398 | LED | 14.60 | 96643930 | ||||
TR 72L50-740 NR BP CL1 OP W9 L60E | 115 | 15597 | LED | 14.60 | 96643928 |
▼ Thor L, Lateral mounting, opal dome, street comfort optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
TR 48L50-730 SC BP CL1 OP W9 L60E | 79 | 9826 | LED | 14.20 | 96643921 | ||||
TR 48L50-740 SC BP CL1 OP W9 L60E | 79 | 10644 | LED | 14.20 | 96643919 | ||||
TR 72L50-730 SC BP CL1 OP W9 L60E | 115 | 14511 | LED | 14.60 | 96643931 | ||||
TR 72L50-740 SC BP CL1 OP W9 L60E | 115 | 15720 | LED | 14.60 | 96643929 |
