Dyana

  • Dyana
  • Dyana

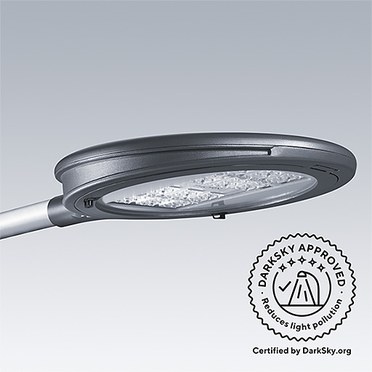

A high quality LED luminaire to enchance efficiently, urban roads and streets up to ME2

  • Flexibility of use: 13 lumen outputs (up to 21500 lm), two sizes, top or lateral mountings and two optics to cover a wide range of lighting projects from S to ME2 classes
  • High performance Thorn R-PEC road and street lighting LED optic with high efficiency (up to 150 lm/W)
  • Durable IP66 and IK10 luminaire made of high quality die-cast aluminium
  • Coordinated with new brackets and columns for a full harmonised architectural project

Materials and Finish

Body, spigot and canopy (size 1): die-cast aluminium (EN AC-47100), power coating textured dark grey finish. Standard corrosion class: C3. Canopy (size 2): spun aluminium (EN AC-44300), textured anthracite finish. Standard corrosion class C5 according to ISO 9223: 2012.
Flat glass cover: 5mm thick toughened glass.
Gasket (size 1): Ethylene Propylene Diamine rubber (EPDM), (size 2) silicon.

Installation and Mounting

Optimised street optic for good control and comfort. Dedicated range of columns and brackets. Opening from above. Side-entry mounting Ø 60 mm, tilt = 0°, -5°. Post-top mounting Ø 60 mm, tilt = 5°, 10°.
Option for Ø 76 mm PT mounting with spigot accessory. End cap secured by 2 screws. Slim section: only 92mm thick. Supplied complete and ready to install, in a single box. Weight: 12kg max.

Specification

To specify state:
IP 66 aluminium decorative streetlighting lantern in 2 sizes. Post top or side entry mounting onto a 60mm spigot (76mm available) with tilting capability of 5° and 10° (PT) or -5° (SE). With options for dimming, CLO (constant light output) and presence detection.
As Thorn Dyana LED.

New Product
LumExpress Product
eControl Product

Dyana LED, Size 1

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
DYANA LED 36L100 NR 740 CL1 MLE6011411490DY122RSMLED11.6096264391
DYANA LED 36L100 NR 740 CL1 MLE60 PM11411490LED11.7096264393
DYANA LED 36L50 NR 740 CL1 HT MLE60557546DY59RSMLED11.7096263154
DYANA LED 60L70 NR 740 CL1 MLE6012516637DY138RSMLED12.2096264403

Dyana LED, Bi-power, size 1

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
DYANA LED 12L70 NR 740 BP CL1 MA76283420DY28B8RMALED10.2496263159
DYANA LED 12L70 NR 740 BP CL1 MA76 PM283420DY28B8MRMALED10.3096263162
DYANA LED 12L70 NR 740 BP CL1 MLE60283420DY28B8LED10.8496261027
DYANA LED 12L70 NR 740 BP CL1 MLE60 PM283420DY28B8MLED10.9096261127
DYANA LED 24L70 NR 740 BP CL1 MA76536788DY55B8RMALED10.2796263160
DYANA LED 24L70 NR 740 BP CL1 MA76 PM536788DY55B8MRMALED10.3396263163
DYANA LED 24L70 NR 740 BP CL1 MLE60536788DY56B8LED10.8796261028
DYANA LED 24L70 NR 740 BP CL1 MLE60 PM536788DY56B8MLED10.9396261128
DYANA LED 36L100 NR 740 BP CL1 MA7611411490LED11.7096264394
DYANA LED 36L100 NR 740 BP CL1 MLE6011411490LED11.6096264390
DYANA LED 36L100 NR 740 BP CL1 MLE60 PM11411490LED11.7096264392
DYANA LED 36L100 NR 740 CL1 MA76 PM11411490LED11.8096264395
DYANA LED 36L50 NR 740 BP CL1 HT MLE60557546LED11.7096263156
DYANA LED 36L70 NR 740 BP CL1 MA767810089DY82B8RMALED10.2896263161
DYANA LED 36L70 NR 740 BP CL1 MA76 PM7810089DY82B8MRMALED10.3496263164
DYANA LED 36L70 NR 740 BP CL1 MLE607810089DY84B8LED9.4696261029
DYANA LED 36L70 NR 740 BP CL1 MLE60 PM7810089DY84B8MLED10.9496261129
DYANA LED 60L70 NR 740 BP CL1 MA7612516637LED12.2096264406
DYANA LED 60L70 NR 740 BP CL1 MLE6012516637LED12.2096264402
