Omega Pro 2 / OP2 3800-840 CKIT+ HX E3 3X12

92914016

Change configuration

  • Base: 92914016 — OP2 3800-840 CKIT+ HX E3 3X12
  • Optic: ESC: escape route emergency optic

Data Sheet

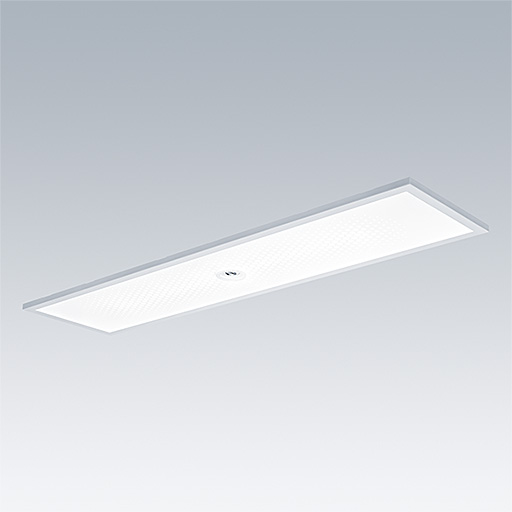

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable with 3 hour, manual test, emergency lighting circuit. Class II electrical (this product is not earthed), IP40_IP20, Impact strength: IK03. Body: steel sheet, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 1197 x 297 x 59 mm
Luminaire input power: 27.4 W
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 139 lm/W
Weight: 6.09 kg

Equipped with:

  • Optics polycarbonate lens for escape emergency lighting.
Mode selection
    • CE
    • Einb_NDaeMat
    • ENEC11
    • GLedReP
    • 650°
    • IK03
    • IP40_IP20
    • LLedNr
    • RG0
    • SC2
    • Ta=0°C_to_+35°C
