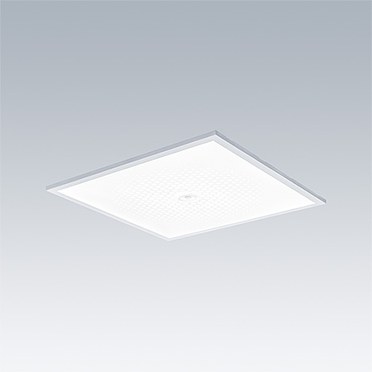

Omega Pro 2
Connect to the future
- Connectivity-ready luminaire featuring the pluggable, interoperable C-KIT for toolless mechanical and electrical connection of sensors, wireless nodes or emergency functionality
- The right light for any task is provided through 3 dedicated optics: opal (OP) / balance, prismatic (MPT) / performance and hexagonal (HX) / comfort
- Tune your light and shape your office or school towards a zone of relaxation, focus or communication with the new variable colour temperature feature (VCT)
- Omega Pro 2 can be installed into visible & hidden T-bar ceilings, plasterboard ceilings and can be surface mounted or suspended too
Materials and Finish
Frame: mild sheet steel, white (RAL9016)
Back: mild sheet steel, galvanised
Diffuser: OP = UV-stabilized PMMA, MPT / HX = UV-stabilized PC
CKIT / CKIT+: UV-stabilized Polycarbonate
Installation and Mounting
Lay-in: Omega Pro LED is suitable for lay-in installation into 15mm or 24mm exposed T grid ceilings.
Concealed ceilings: For installation into concealed ceilings , accessories are available and need to be ordered separately.
Plasterboard ceilings: For installation into plasterboard ceilings, accessories are available and need to be ordered separately.
Surface mounting: collar type - fixed to the ceiling with 4 screws via keyhole slots, product to be laid in.
Suspended mounting: suspended via adjustable wire suspension (1500mm), 4 fixing points to the ceiling.
Specification
To specify state:
A shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).
CKIT
A connectivity ready, smart, DALI V2-dimmable shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Comes with interoperable plug & play CKIT element providing tool-less mechanical and electrical connection of wireless nodes or emergency packs. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).
CKIT+
A connectivity and sensor ready, smart, DALI V2-dimmable shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Comes with interoperable plug & play CKIT element providing tool-less mechanical and electrical connection of wireless nodes or emergency packs with interchangeable optics. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).
As Thorn Omega Pro 2
▼ Omega Pro 2 CKITplus, MPT optic
▼ Omega Pro 2 CKITplus, HX optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OP2 3000-840 CKIT+ HX BC Q600 | 22 | 3000 | LED | 5.44 | 92916358 | ||||
OP2 3800-840 CKIT+ HX 3X12 | 27 | 3800 | LED | 5.58 | 92914008 | ||||
OP2 3800-840 CKIT+ HX BC E3D Q600 | 27 | 3800 | LED | 5.96 | 92919662 | ||||
OP2 3800-840 CKIT+ HX BC PIR Q600 | 27 | 3800 | LED | 5.52 | 92916991 | ||||
OP2 3800-840 CKIT+ HX BC Q600 | 27 | 3800 | LED | 5.44 | 92916357 | ||||
OP2 3800-840 CKIT+ HX E3 3X12 | 27 | 3800 | LED | 6.09 | 92914016 | ||||
OP2 3800-840 CKIT+ HX Q600 | 27 | 3800 | LED | 5.35 | 92913222 | ||||
OP2 4400-840 CKIT+ HX BC E3D Q600 | 33 | 4450 | LED | 6.01 | 92919518 | ||||
OP2 4400-840 CKIT+ HX BC PIR Q600 | 33 | 4450 | LED | 5.52 | 92917316 | ||||
OP2 4400-840 CKIT+ HX BC Q600 | 33 | 4450 | LED | 5.44 | 92916356 | ||||
OP2 4400-927-65 CKIT+ HX Q600 | 48 | 4450 | LED | 5.35 | 92915527 | ||||
OP2 4400-927-65 CKIT+ HX Q625 | 48 | 4450 | LED | 5.75 | 92915530 |
▼ Omega Pro 2 CKITplus, OP optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OP2 3000-840 CKIT+ OP BC PIR 3X12 | 24 | 2850 | LED | 5.75 | 92917606 | ||||
OP2 3000-840 CKIT+ OP BC PIR Q600 | 24 | 2850 | LED | 5.44 | 92920343 | ||||
OP2 3000-840 CKIT+ OP BC Q600 | 24 | 2850 | LED | 5.44 | 92916372 | ||||
OP2 3800-840 CKIT+ OP BC PIR Q600 | 29 | 3600 | LED | 5.52 | 92916992 | ||||
OP2 3800-840 CKIT+ OP BC Q600 | 29 | 3600 | LED | 5.44 | 92916371 | ||||
OP2 4400-840 CKIT+ OP BC PIR Q600 | 35 | 4250 | LED | 5.52 | 92919036 | ||||
OP2 4400-840 CKIT+ OP BC Q600 | 35 | 4250 | LED | 5.44 | 92916374 |
▼ Omega Pro 2 CKIT, MPT optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OP2 3000-840 CKIT MPT BC 3X12 | 24 | 3000 | LED | 5.67 | 92920012 | ||||
OP2 3000-840 CKIT MPT BC Q600 | 24 | 3000 | LED | 5.44 | 92920353 | ||||
OP2 3800-840 CKIT MPT BC 3X12 | 29 | 3800 | LED | 5.67 | 92920014 | ||||
OP2 3800-840 CKIT MPT BC Q600 MRG | 29 | 3800 | LED | 5.46 | 92913233 | ||||
OP2 4400-840 CKIT MPT BC 3X12 | 35 | 4450 | LED | 5.67 | 92920010 |
▼ Omega Pro 2 CKIT, HX optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OP2 3000-840 CKIT HX Q600 | 22 | 3000 | LED | 5.40 | 92919333 | ||||
OP2 3800-840 CKIT HX Q600 | 27 | 3800 | LED | 5.40 | 92916880 | ||||
OP2 3800-940 CKIT HX BC Q600 | 35 | 3800 | LED | 5.44 | 92916875 | ||||
OP2 4400-830 CKIT HX BC Q600 | 33 | 4150 | LED | 5.44 | 92914499 | ||||
OP2 4400-830 CKIT HX Q600 | 33 | 4150 | LED | 5.35 | 92913996 | ||||
OP2 4400-840 CKIT HX BC Q600 | 33 | 4450 | LED | 5.44 | 92917315 | ||||
OP2 4400-927-65 CKIT HX BC Q600 | 48 | 4450 | LED | 5.44 | 92915970 | ||||
OP2 4400-940 CKIT HX BC Q600 | 43 | 4450 | LED | 5.44 | 92917584 | ||||
OP2 4400-965 CKIT HX BC Q600 | 43 | 4450 | LED | 5.44 | 92916883 |
▼ Omega Pro 2 CKIT, OP optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OP2 3800-840 CKIT OP BC Q600 | 29 | 3600 | LED | 5.44 | 92916993 | ||||
OP2 3800-840 CKIT OP BM 3X12 | 29 | 3600 | LED | 5.62 | 92914015 |
▼ Omega Pro 2, MPT optic
▼ Omega Pro 2, HX optic
▼ Omega Pro 2, OP optic
▼ Omega Pro 2 CKIT interchangeable modules
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
OP2 CKIT BC | 0.37 | 96633180 | |||||||
OP2 CKIT BLANK | 0.28 | 96633178 | |||||||
OP2 CKIT BM | 0.32 | 96633179 |
▼ Omega Pro 2 CKITplus interchangeable modules
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
OP2 CKIT+ BC | 0.80 | 96633270 | |||||||
OP2 CKIT+ BC E3 | 1.50 | 96633263 | |||||||
OP2 CKIT+ BC E3D | 0.80 | 96633264 | |||||||
OP2 CKIT+ BC PIR | 0.39 | 96633186 | |||||||
OP2 CKIT+ BLANK | 0.30 | 96633181 | |||||||
OP2 CKIT+ BM | 0.80 | 96633269 | |||||||
OP2 CKIT+ BM PIR | 0.37 | 96633185 | |||||||
OP2 CKIT+ E3 | 0.51 | 96633187 | |||||||
OP2 CKIT+ E3D | 0.52 | 96633188 | |||||||
OP2 CKIT+ HFSX | 0.78 | 96633268 | |||||||
OP2 CKIT+ MWS | 0.40 | 96633182 | |||||||
OP2 CKIT+ PIR DALI-M-sensor G3 | 0.32 | 96633184 | |||||||
OP2 CKIT+ SENS | 0.41 | 96634040 |
▼ Omega Pro 2 mounting accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
OP2 1200x300 SAS330 KIT | 5.60 | 99940945 | |||||||
OP2 CONCEALED CEILING MTG KIT PULL UP | 0.38 | 96633271 | |||||||
OP2 HIDDEN CEILING KIT CLICK IN 3x12 | 0.43 | 96633300 | |||||||
OP2 HIDDEN CEILING KIT CLICK IN 6x6 | 0.22 | 96633198 | |||||||
OP2 PLASTERBOARD MTG KIT 3X12 | 2.21 | 96633195 | |||||||
OP2 PLASTERBOARD MTG KIT Q600 | 1.70 | 96633193 | |||||||
OP2 SAFETY WIRE KIT MRG | 0.01 | 96633199 | |||||||
OP2 SURFACE MTG KIT 3X12 | 2.83 | 96633191 | |||||||
OP2 SURFACE MTG KIT Q600 | 2.21 | 96633189 | |||||||
OP2 SUSPENSION KIT 1500 MSW | 0.30 | 96633197 |
▼ Omega Pro 2 accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
basicDIM ILD PROGRAMMER | 0.03 | 28000257 | |||||||
REMOTECONTOL IR6 | 0.02 | 28000647 |
