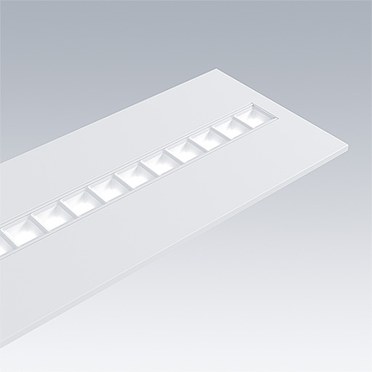

A sustainable LED panel utilising replaceable modular linear LED light source and driver for office and education applications.

  • The key feature of OMEGA MODULINE is the ability to replace LED modules, drivers & sensors making it an upgradeable, more environmentally friendly option with prolonged lifetime with careful maintenance.

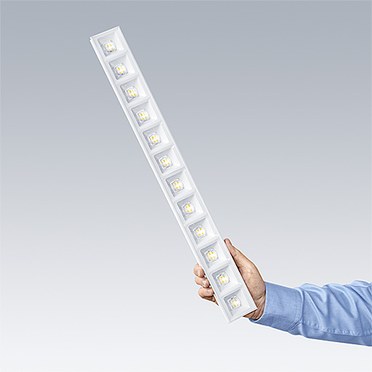

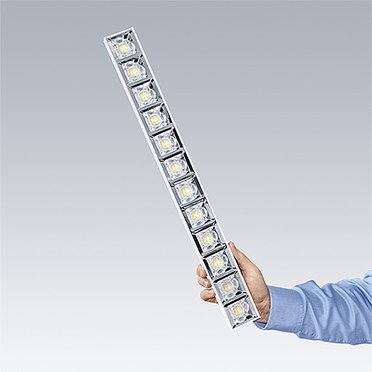

  • Each complete LED module can be easily replaced tool-free and offers a simple click-in mechanism, this allows a change of LED modules at end of life or the change of colour temperature or colour rendering if desired.

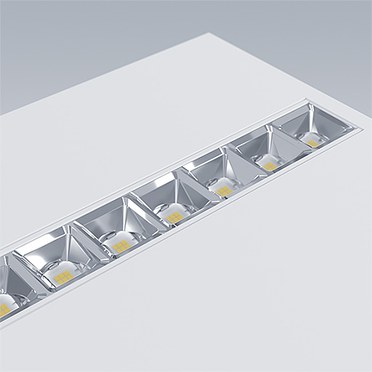

  • A combination of deep cells with primary lenses provide high quality lighting with even light distribution and efficient glare control at very high brightness of the LED modules.

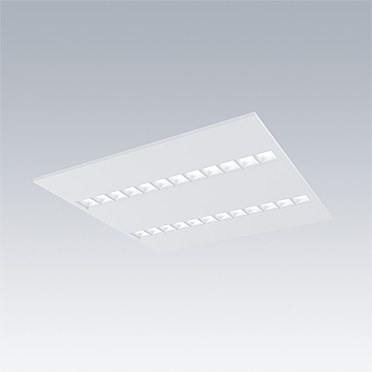

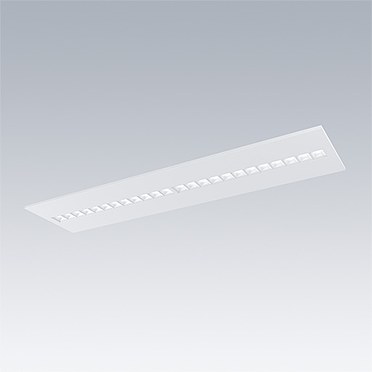

  • Available in sizes 600 x 600 mm, 625 x 625 mm, 1200 x 300 mm in different lumen packages (3300, 4100, 4800 lumen), colour temperatures of 3000 K, 4000 K and VCT 2700 K…6500 K and options of CRI 80 and CRI 90.
  • The design allows the clean integration of sensors, controls and emergency options into the front of the panel with all components neatly stored within a gear tray on the back of the panel.

Materials and Finish

Frame: mild sheet steel, white (RAL9016).
LED module: Moulded plastic, white.
Optical system: Plastic lens.

Installation and Mounting

Suitable for recessed lay in grid ceilings as standard and when combined with additional accessories will allow installation in concealed ceilings, surface-mounted and suspended. All accessories need to be ordered separately.
Each complete linear LED module can be easily replaced tool-free and offers a simple click-in mechanism.

Specification

A sustainable LED panel utilising replaceable linear LED modular light source and driver. Each complete LED module can be easily replaced tool-free and offers a simple click-in mechanism. Each LED module has a combination of deep cells with primary lenses to provide high quality lighting with even light distribution and efficient glare control, UGR <19, at very high brightness of the LED modules. Suitable for lay-in and concealed ceilings as well as for surface mounting or wire suspension. Available in sizes 600 x 600 mm, 625 x 625 mm, 1200 x 300 mm in different lumen packages 3300, 4100, 4800 lumen, colour temperatures of 3000 K, 4000 K and VCT 2700 K…6500 K and options of CRI 80 and CRI 90.

As Thorn OMEGA MODULINE
