PopPack LED
Projects

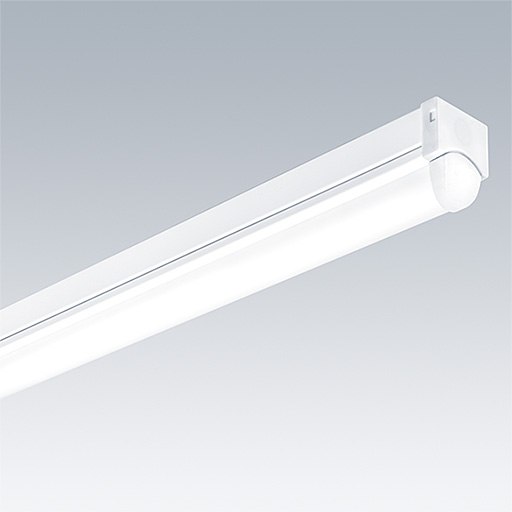

City, University of London, United KingdomPopPack LED batten
- LED one for one replacement for single and twin T8/T5 (35W up to 80W) fluorescent battenLED one for one replacement for single and twin T8/T5 fluorescent battens
- Up to 67% energy reduction vs traditional switch start
- Additional savings can be achieved via DALI control and an integral PIR sensor.
- Up to 153lm/W - exceeding building regulation requirements
Materials and Finish
Batten: pre-coated roll form steel, white (RAL9016)
End caps/lamp holders: injection moulded polycarbonate, white
Diffuser: textured opal acrylic
Installation and Mounting
4/6 way terminal block with capacity for loop in/out 2.5mm² cables. Detachable LED engine for easy installation and replacement. Ambient temperature: -20 to +25°C for the standard product, 0-25°C for the emergency versions, normal, dry, indoor atmospheres. Fixation to central BESA fixing or entrance through spine. Through wiring possible through knock out holes in the spine and end caps. Easy alignment through slots in the spine. Bare battens can be mounted end to end (except emergency versions - recommended minimum space between luminaires 50mm).
Specification
To specify state:
LED batten with a removable LED engine. Switchable or DALI ballast, integral emergency and sensor versions available.
As Thorn PopPack LED
New Product
LumExpress Product
eControl Product
▼ PopPack LED battens
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HF L1800 | 74 | 10900 | PP11000Z6F | LED | 1.80 | 96631570 | ||||
| POPPACK LED 3000-830 HF L1200 | 24 | 3200 | PP3000Z4F3K | LED | 1.40 | 96631574 | ||||
| POPPACK LED 3000-840 HF L1200 | 24 | 3350 | PP3000Z4F | LED | 1.30 | 96631538 | ||||
| POPPACK LED 4500-830 HF L1200 | 36 | 4450 | PP4500Z4F3K | LED | 1.40 | 96631575 | ||||
| POPPACK LED 4500-840 HF L1200 | 36 | 4650 | PP4500Z4F | LED | 1.40 | 96631542 | ||||
| POPPACK LED 5000-830 HF L1500 | 36 | 4700 | PP5000Z5F3K | LED | 1.70 | 96631578 | ||||
| POPPACK LED 5000-840 HF L1500 | 36 | 4900 | PP5000Z5F | LED | 1.70 | 96631554 | ||||
| POPPACK LED 6000-830 HF L1500 | 53 | 6050 | PP6000Z5F3K | LED | 1.70 | 96631579 | ||||
| POPPACK LED 6000-840 HF L1500 | 53 | 6400 | PP6000Z5F | LED | 1.70 | 96631558 | ||||
| POPPACK LED 6500-830 HF L1800 | 54 | 6450 | PP6500Z6F3K | LED | 1.80 | 96631580 | ||||
| POPPACK LED 6500-840 HF L1800 | 54 | 6800 | PP6500Z6F | LED | 1.80 | 96631566 | ||||
| POPPACK LED 7000-830 HF L1200 | 52 | 6900 | PP7000Z4F3K | LED | 1.40 | 96631576 | ||||
| POPPACK LED 7000-840 HF L1200 | 52 | 7300 | PP7000Z4F | LED | 1.40 | 96631546 | ||||
| POPPACK LED 9000-840 HF L1500 | 64 | 9100 | PP9000Z5F | LED | 1.70 | 96631562 |
▼ PopPack LED battens, dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HFI L1800 | 74 | 10900 | PP11000D6F | LED | 1.80 | 96631572 | ||||
| POPPACK LED 3000-840 HFI L1200 | 24 | 3350 | PP3000D4F | LED | 1.40 | 96631540 | ||||
| POPPACK LED 4500-840 HFI L1200 | 36 | 4650 | PP4500D4F | LED | 1.40 | 96631544 | ||||
| POPPACK LED 5000-840 HFI L1500 | 36 | 4900 | PP5000D5F | LED | 1.70 | 96631556 | ||||
| POPPACK LED 6000-840 HFI L1500 | 53 | 6400 | PP6000D5F | LED | 1.70 | 96631560 | ||||
| POPPACK LED 6500-840 HFI L1800 | 54 | 6800 | PP6500D6F | LED | 1.80 | 96631568 | ||||
| POPPACK LED 7000-840 HFI L1200 | 52 | 7300 | PP7000D4F | LED | 1.40 | 96631548 | ||||
| POPPACK LED 9000-840 HFI L1500 | 64 | 9100 | PP9000D5F | LED | 1.70 | 96631564 |
▼ PopPack LED battens, dimmable, emergency
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HFI E3 L1800 | 74 | 10900 | PP11000DE6F | LED | 2.50 | 96631573 | ||||
| POPPACK LED 3000-840 HFI E3 L1200 | 24 | 3350 | PP3000DE4F | LED | 2.00 | 96631541 | ||||
| POPPACK LED 4500-840 HFI E3 L1200 | 36 | 4650 | PP4500DE4F | LED | 2.00 | 96631545 | ||||
| POPPACK LED 5000-840 HFI E3 L1500 | 36 | 4900 | PP5000DE5F | LED | 2.30 | 96631557 | ||||
| POPPACK LED 6000-840 HFI E3 L1500 | 53 | 6400 | PP6000DE5F | LED | 2.30 | 96631561 | ||||
| POPPACK LED 6500-840 HFI E3 L1800 | 54 | 6800 | PP6500DE6F | LED | 2.50 | 96631569 | ||||
| POPPACK LED 7000-840 HFI E3 L1200 | 52 | 7300 | PP7000DE4F | LED | 2.00 | 96631549 | ||||
| POPPACK LED 9000-840 HFI E3 L1500 | 64 | 9100 | PP9000DE5F | LED | 2.30 | 96631565 |
▼ PopPack LED battens, with sensor
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 PIR L1800 | 74 | 10900 | PP11000ZS6F | LED | 1.80 | 96631589 | ||||
| POPPACK LED 3000-840 PIR L1200 | 24 | 3350 | PP3000ZS4F | LED | 1.40 | 96631581 | ||||
| POPPACK LED 4500-840 PIR L1200 | 36 | 4650 | PP4500ZS4F | LED | 1.40 | 96631582 | ||||
| POPPACK LED 5000-840 PIR L1500 | 36 | 4900 | PP5000ZS4F | LED | 1.70 | 96631585 | ||||
| POPPACK LED 6000-840 PIR L1500 | 53 | 6400 | PP6000ZS5F | LED | 1.70 | 96631586 | ||||
| POPPACK LED 6500-840 PIR L1800 | 54 | 6800 | PP6500ZS6F | LED | 1.80 | 96631588 | ||||
| POPPACK LED 7000-840 PIR L1200 | 52 | 7300 | PP7000ZS4F | LED | 1.40 | 96631583 | ||||
| POPPACK LED 9000-840 PIR L1500 | 64 | 9100 | PP9000ZS5F | LED | 1.70 | 96631587 |
▼ PopPack LED Accessories
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED WIRE GUARD 1,2M | PPWG4F | 0.69 | 96627902 | |||||||
| POPPACK LED WIRE GUARD 1,5m | PPWG5F | 0.74 | 96628147 | |||||||
| POPPACK LED WIRE GUARD 1,8M | PPWG6F | 1.04 | 96627903 | |||||||
| POPPACK LED WIRE SUSPENSION KIT 2M | PPSUS2M | 0.25 | 96627711 | |||||||
| SWITCHLITE CC PROGRAMMER | SWCCPROG | 0.02 | 96240295 |
