Urba Deco / UD 24L35-730 WSC-S CL1 WS1 T60T BK

96277181

Data Sheet

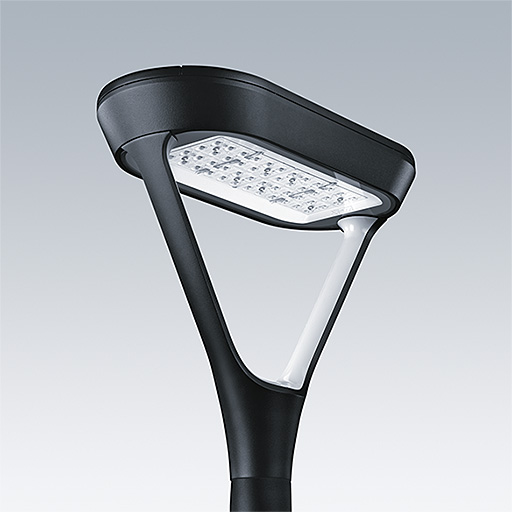

A smart, sophisticated architectural urban lantern with 24 LEDs driven at 350mA and a Wide Street Comfort (symmetrical) optic. Electronic, fixed output control gear. Class I electrical, IP66, Impact strength: IK10. Canopy and base: die-cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black (close to RAL9005). Enclosure: 6mm thick clear glass. Arms: die-cast aluminium textured black (close to RAL9005) covered with a shield in plastic ASA. Pre-wired with 1m cable. Post top mounting to Ø60mm column, luminaire perpendicular to the road. Complete with 3000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 510 x 241 x 474 mm
Luminaire input power: 26.1 W
Luminaire luminous flux: 3794 lm
Luminaire efficacy: 145 lm/W
Weight: 7.14 kg
Scx: 0.049 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3794 lm
  • Luminaire efficacy*:145 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500877 LCO 40/200-1050/64 NF C ADV3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 35 °C
  • Luminaire input power*:26.1 W
  • Dimming:FO
  • LED
  • CE
  • ENEC11 +
  • ENEC11
  • GLedReP
  • IDA
  • IK10
  • IP66
  • Coastal_C3
  • LLedReP
  • SC1
  • Ta=35°C
