Urba Deco / UD 48L50 730 WSC-S CL1 WS1 MCA-T BK U0

96279244

Data Sheet

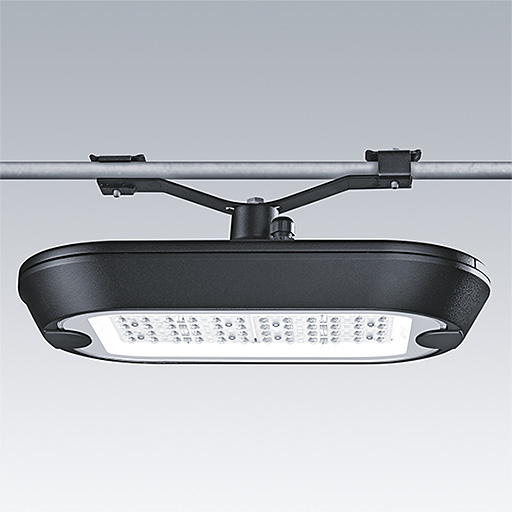

A smart, sophisticated architectural urban lantern with 48 LEDs driven at 500mA and a Wide Street Comfort (symmetrical) optic with no upward light. Electronic, fixed output control gear. Class I electrical, IP66, Impact strength: IK10. Canopy and base: die-cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black (close to RAL9005). Enclosure: 6mm thick clear glass. Pre-wired with 1m cable. Catenary mounted through 34G, luminaire perpendicular to the road. Complete with 3000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 510 x 241 x 266 mm
Luminaire input power: 72 W
Luminaire luminous flux: 9703 lm
Luminaire efficacy: 135 lm/W
Weight: 7.27 kg
Scx: 0.031 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:9703 lm
  • Luminaire efficacy*:135 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96271331 DRV OS OT 90W 1.05A 186V D #1A0 4DIMLT2
  • Correlated colour temperature:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L90 100000h at 25°C
  • Luminaire input power*:72 W
  • Dimming:FO
  • LED
  • CE
  • ENEC11
  • GLedReP
  • IDA
  • IK10
  • IP66
  • Coastal_C3
  • LLedReP
  • SC1
  • Ta=35°C
