Raze Bollard 700
RAB 1L20-830 WPC HF/R MAS CL1 6K 700 ANT
Article number: 96632078
EAN number: 9010299056580
Technical Data
Electrical Properties
EEC
E
Luminaire input power
9 W
Power factor
0.66
Rated voltage
230 - 240 V
Ballast
Ballast 1: 1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
Safety Class
SC1
Light Distribution
Light Source
LED
Luminaire luminous flux
403 lm
Luminaire efficacy
45 lm/W
Filterable Correlated Colour Temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
173x220x700 mm
Mounting type
Free-standing luminaire
Length
173 mm
Width
220 mm
Height
700 mm
Weight
7.385 kg
Impact strength
IK10
Degree of protection
IP66
Maintenance and Protection
Rated Median Useful Life
L70 100000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
Downloads
RAB 1L20-830 WPC HF/R MAS CL1 6K 700 ANT

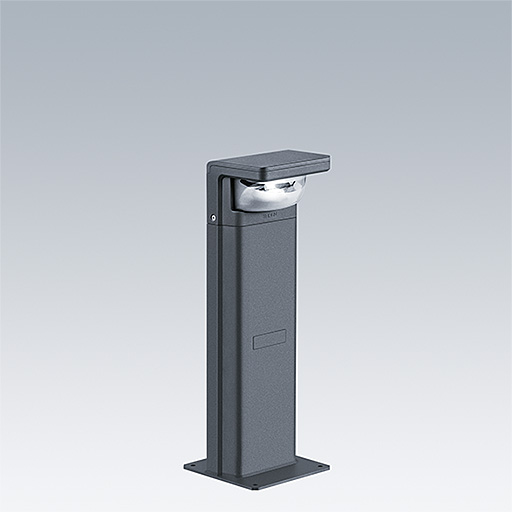

A flange mounted LED bollard of 700mm height, incorporating Thorn's Flat beam® technology. 1 LED driven at 200mA. LED driver included. Class I electrical, IP66, IK10. Housing: Die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stabilised polycarbonate, semi-frosted. Fasteners: stainless steel. Configured as motion detection master with concealed integral sensor and powerline control. Pre-set corridor function 20-100% for 5 minutes. Detection radius 5m. Complete with 3000K LED.
6kV surge protection as standard. 200mm x 200mm fixing centres, bolts not included.
Dimensions: 173 x 220 x 700 mm
Luminaire luminous flux: 403 lm
Luminaire efficacy: 45 lm/W
Weight: 7.38 kg
