Plurio

  • Plurio
  • Plurio
  • Plurio
  • Plurio

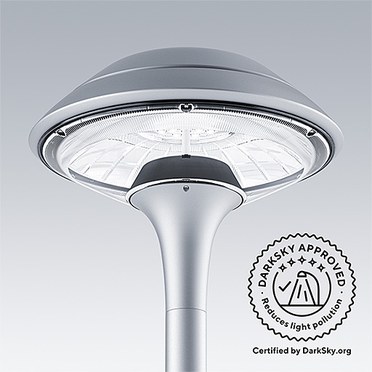

Versatile post-top lantern, dark sky compliant offering Nighttune technology

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.

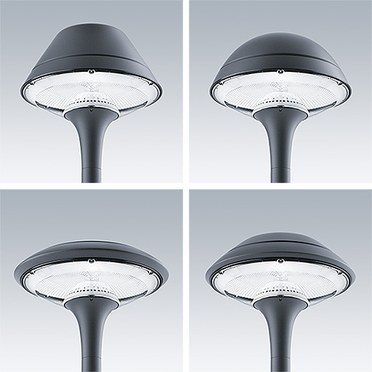

  • High versatility with a choice of four canopy designs : original, round, flat and disc
  • Direct or indirect lighting
  • Nighttune technology
  • Zd4i certified on request

Materials and Finish

Base and canopy: die-cast aluminium

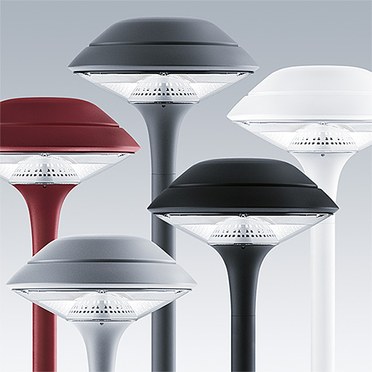

Via the configurator: texturized anthracite, black (R9005) and light grey and 48 other RAL possibilities
Ø60 mm: EN AC-44300, standard corrosion class C5 according to ISO 9223: 2012. Ø76 mm: EN AC-47100, standard corrosion class C3
Diffuser: clear UV stabilized polycarbonate with anti glare prisms on the outer part
Internal reflector and cable pipe: white highly reflective ABS (plastic)
Mirrors (asymmetrical version): high reflective anodised aluminium
Screw fixings: stainless steel

Installation and Mounting

Post top mounting. Recommended height: 3-4m
Spigot: 60mm (length: 75mm) or 76mm (length: 100mm)
Dedicated range of columns and brackets
Access to LEDs and gear via 3 screws below the bowl
Pre-wired versions available via configurator
Delivered in one carton ready to install, complete with factory fitted integral gear.

Specification

To specify state:
Decorative post-top lantern ULOR 0/ DALI2 / Connectivity with Zhaga or Nema interface/ LRT / Bi Power / Bi Power Switch / CLO
As Thorn Plurio

New Product
LumExpress Product
eControl Product

Plurio Indirect, Symmetrical optic, original canopy

Plurio Indirect, Symmetrical optic, round canopy

Plurio Indirect, Symmetrical optic, flat canopy

Plurio Indirect, Symmetrical optic, disc canopy

Plurio Direct, Symmetrical optic, original canopy

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
PLD O 18L105-740 R/S BS 3550 T60 CL1 GY607034PL63604KLED9.5096272421
PLD O 18L35-740 R/S BS 3550 T60 CL1 GY202727PL20B860LED9.5096260708
PLD O 18L35-740 R/S BS 3550 T76 CL1 GY202727LED9.5092920900
PLD O 18L50-740 R/S BS 3550 T60 CL1 GY283747PL30B860LED9.5096260722
PLD O 18L70-740 R/S BS 3550 T60 CL1 GY395001PL40B860LED9.5096260674

Plurio Direct, Symmetrical optic, round canopy

Plurio Direct, Symmetrical optic, flat canopy

Plurio Direct, Symmetrical optic, disc canopy
