Cesar Stroll B / CESAR STROLL B H950 1L930 S/S HFX GY

96700260

▼ Data Sheet

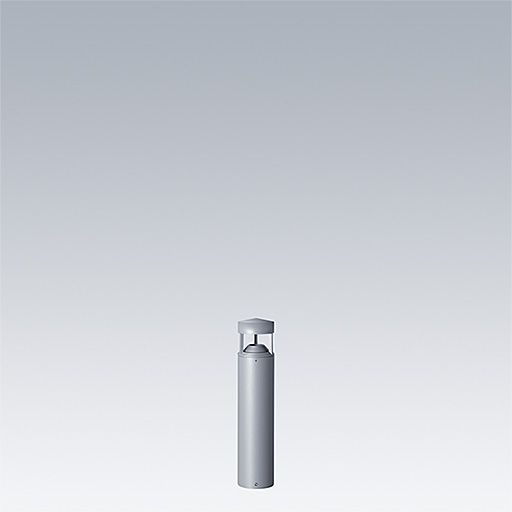

Cesar Stroll B a free-standing, decorative LED bollard. distribution. DALI-2 dimmable LED driver. Class II electrical (this product is not earthed), IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 950 mm
Luminaire input power: 35.1 W
Luminaire luminous flux: 1941 lm
Luminaire efficacy: 55 lm/W
Weight: 10.61 kg

Mode selection
    • CE
    • IK10
    • IP65
    • SC2

    ▼ Photometry

    Photometric configuration
