  • Axyl Greet B — AXYL GREETB H290 SE 56L 940 A/S HFX BK

Axyl Greet B / AXYL GREETB H290 SE 56L 940 A/S HFX BK

96700638

▼ Data Sheet

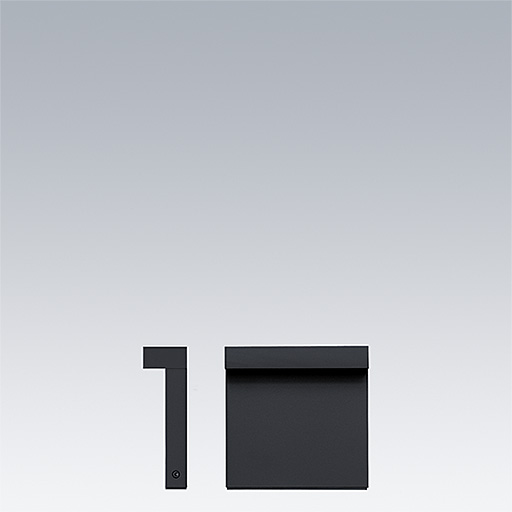

AXYL Greet B, a free-standing, decorative LED bollard with asymmetrical distribution. Class II electrical (this product is not earthed).. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED..

Dimensions: 85 x 290 x 290 mm
Luminaire input power: 11.3 W
Luminaire luminous flux: 800 lm
Luminaire efficacy: 71 lm/W
Weight: 4.5 kg

Mode selection
    • CE
    • IK06
    • IP65
    • SC2

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
