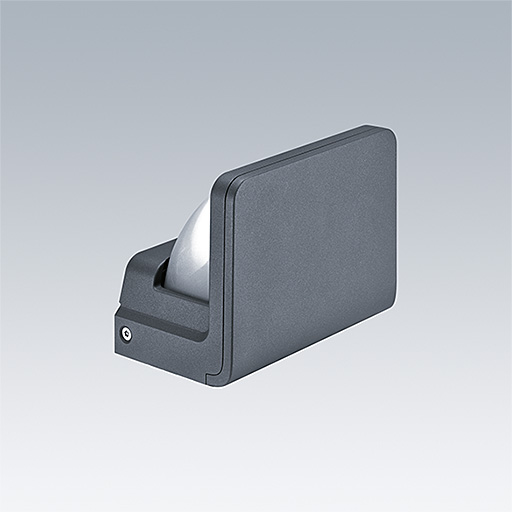

Raze Architectural Large
RAA L 1L50-830 LV HFX 6K MWA ANT
Article number: 96631792
EAN number: 9010299056047
Technical Data
Electrical Properties
EEC
E
Luminaire input power
21 W
Power factor
0.93
Rated voltage
230 - 240 V
Ballast
Ballast 1: 1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
Safety Class
SC2
Dim Control
Dimming DALI
Light Distribution
Light Source
LED
Luminaire luminous flux
1433 lm
Luminaire efficacy
68 lm/W
Filterable Correlated Colour Temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
172x147x220 mm
Mounting type
Wall surface mounted
Length
172 mm
Width
220 mm
Height
147 mm
Weight
2.75 kg
Impact strength
IK10
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated Median Useful Life
L70 100000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
Downloads
RAA L 1L50-830 LV HFX 6K MWA ANT
A compact, Wall mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 500mA. Integral DALI dimmable LED driver included. Class II electrical, IP66, IK08. Housing: Die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stablised polycarbonate, semi-frosted. Fasteners: stainless steel. Fitted with internal louvre to reduce lateral glare. Complete with 3000K LED.
S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard. Pre-wired.
Dimensions: 172 x 147 x 220 mm
Luminaire luminous flux: 1433 lm
Luminaire efficacy: 68 lm/W
Weight: 2.77 kg
