Oxane
OX2 36L35-730 NR CL2 L60E GY-S
Article number: 96684211
EAN number: 3607640727204
Technical Data
Electrical Properties
EEC
D
Luminaire input power
38.6 W
Power factor
0.94
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 87500878 LCO 60/200-1050/100 NF C ADV3
Safety Class
SC2
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
5983 lm
Luminaire efficacy
155 lm/W
Filterable Correlated Colour Temperature
3000 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Beam Angle
Narrow Road
Physical Characteristics
Dimensions
653x316x127 mm
Mounting type
Outdoor post top lateral
Length
653 mm
Width
316 mm
Height
127 mm
Weight
7.983 kg
Colour
Grey
Impact strength
IK08
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated Median Useful Life
L95 100000 h Rated useful life (B10) 25 °C
Norms and Standards
Certificates
Downloads
OX2 36L35-730 NR CL2 L60E GY-S

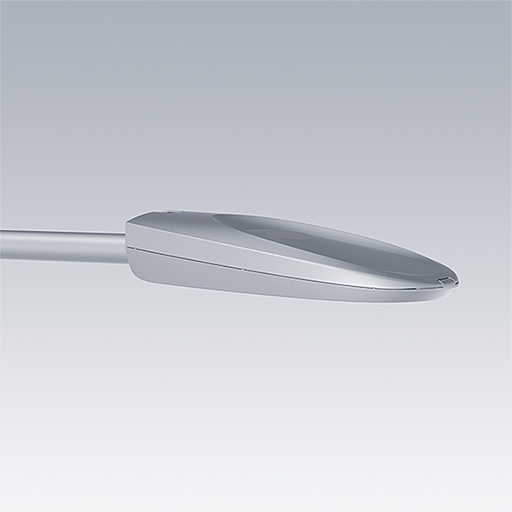

State of the art aesthetic lantern for urban and road lighting application with 36 LEDs driven at 350mA with Narrow Road optic. Electronic, fixed output control gear. Class II electrical, IP66, Impact strength: IK08. Body: Die-cast aluminium (EN AC-44300), Light grey textured (150) - partly painted. Glass : tempered glass (4mm) offering >90% light transmission. Fixings: stainless steel with anti-galvanic treatment. Lateral Mounting D60mm, 0° tilt. Complete with 3000K LED.
Dimensions: 653 x 316 x 127 mm
Weight: 7.98 kg
Scx: 0.073 m²
