BRAX1 0.5M TAP COL 3/4/5/6M SE 42MM*

Steel Tapered Columns and Accessories

Side entry brackets

Article number: 96632716

Mounting bracket

Find your perfect lighting solution for your project in just a few steps

Technical Data

Light Distribution

STD - standard

Physical Characteristics

Dimensions

42x42x500 mm

Length

42 mm

Width

42 mm

Height

500 mm

Weight

4.701 kg

Drawings

Dimensional sketch

Download the file

Downloads

Design Data

Datasheet

Family datasheet

Transfer to ecoCALC, VIVALDI, DALEC or HILITE

Handling

Product description

BRAX1 0.5M TAP COL 3/4/5/6M SE 42MM*

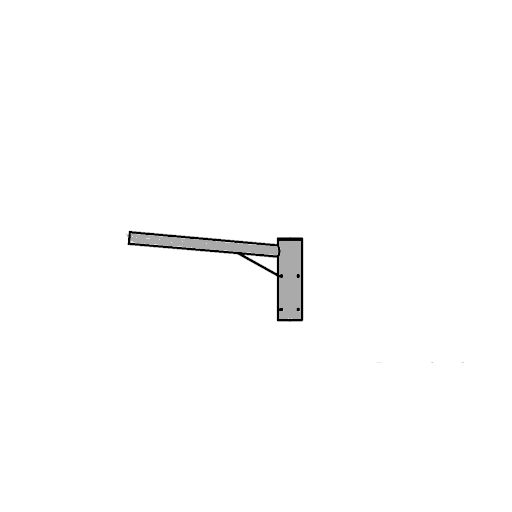

Single 500mm outreach arm bracket for side entry mounting Ø42mm. Weight: 5.23 kg (approx) This bracket is suitable for use with the following columns: 96632723 : 3m tapered column, root mounted, Ø76mm top spigot 96632724 : 3m tapered column, flange mounted, Ø76mm top spigot 96632703 : 4m tapered column, root mounted, Ø76mm top spigot 96632704 : 4m tapered column, flange mounted, Ø76mm top spigot 96632705 : 5m tapered column, root mounted, Ø76mm top spigot 96632706 : 5m tapered column, flange mounted, Ø76mm top spigot 96632707 : 6m tapered column, root mounted, Ø76mm top spigot 96632708 : 6m tapered column, flange mounted, Ø76mm top spigot Please note : Delivery charges will apply to this item.
