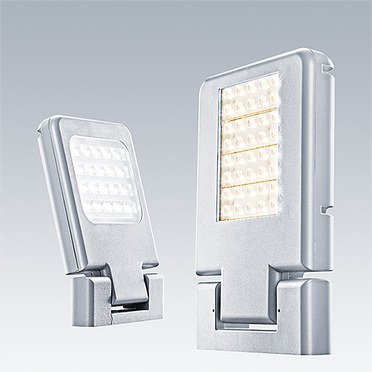

Durable, versatile and efficient LED floodlights for outdoor and indoor area lighting

  • Wide choice including two sizes, four lumen packages, two colour temperatures, tilting angles -90°/+90° and three mounting options
  • Exceptionally low cost of ownership with an optimised heat management system to provide a lifetime up to 80,000 hours (L70, 25°)
  • Extremely durable full die-cast aluminium and IP66/IK08 rated package, complete with 10Kv surge protection
  • Minimalist design is coordinated with Olsys Street luminaires, poles and brackets, seamlessly integrating with the environment

Materials and Finish

Body: die-cast aluminium (AS9U), standard corrosion class: C3, powder coated silver grey 9006
Enclosure: size 1 clear UV stabilised PC size 2: tempered glass
Optics: size 1 PC, size 2 micro reflectors in highly reflective anodised aluminium
Screws: stainless steel

Installation and Mounting

Size 2 supplied pre-wired with connector.
Delivered ready to install for wall mounting, knock out on the side of the base for cabling when it is not integrated within the wall. For ground mounting please order the spike accessory. Possibility to post top mount with Olsys street accessories. Dedicated column package for urban area lighting or car parks. Delivered with factory integral gear, all supplied in one box.
Maintenance: access to gear (replaceable) via 4 screws from the canopy.
Suitable for ambient temperature range -30 to 50°C


To specify state:
IP66 LED floodlights available in 24/45/70/90W (up to 8530lm) with asymmetric distribution.
As Thorn Olsys Area.

New Product
LumExpress Product
eControl Product

Olsys 1 area

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
OLSYS1 12L70 730 CL1 AREA A/S283160LED2.8596633544
OLSYS1 12L70-740 CL1 AREA A/S283315LED2.8596633540
OLSYS1 18L70 730 CL1 AREA A/S404695LED2.8596633546
OLSYS1 18L70 740 CL1 AREA A/S404920LED2.8596633542

Olsys 1 area, mounting accessories

Description   Catalogue No.Wt (kg)SAP Code

Olsys 2 area

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
OLSYS2 36L70 730 CL1 AREA A/S789895LED9.8596633556
OLSYS2 36L70 740 CL1 AREA A/S7810375LED9.8596633552
OLSYS2 48L70 730 CL1 AREA A/S10413030LED9.8596633558
OLSYS2 48L70 740 CL1 AREA A/S10413665LED9.8596633554

Olsys 2 area, mounting accessories

Description   Catalogue No.Wt (kg)SAP Code
OLSYS2 MTP 60/76OY2APT602.9096262304
