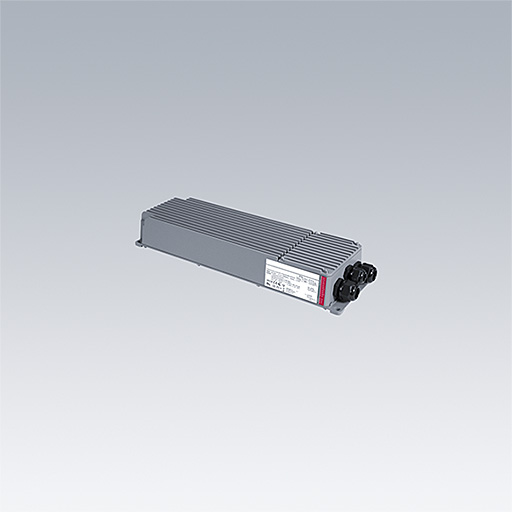

Altis, gearbox - Performance, class C3 without NTC

ALG5 GB LE 2100W 1.25A 550V 3CH DA
Article number: 96688776
EAN number: 5063016703759
See other variants
Where to buy

Technical Data

Electrical Properties
Rated voltage
200 - 440 V
Safety Class
SC1
Emergency included
No
Lum Data
No
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Dimensions
152x500x130 mm
Length
152 mm
Width
500 mm
Height
130 mm
Weight
6.178 kg
Impact strength
IK08
Degree of protection
IP66
Maintenance and Protection
Maintenance category CIE 97
E - Dust-proof IP5X
Norms and Standards
Certificates
Ta=45°C
GLedReP
RCM
CE
Electrical class I
IK08
IP66
Drawings
Dimensional sketch
Download the file

Downloads

Product description

19.86 kB
Brochure PDF

Altis, gearbox - Performance, class C3 without NTC

96688776 ALG5 GB LE 2100W 1.25A 550V 3CH DA Class I, DALI 2 programmable gearbox, with 3 independant output channels and IP66 enclosure, for TV broadcasting applications. Suitable for dedicated 432 / 456 / 480 / 504 LED Altis floodlight, to be installed remotely up to 200m from the floodlight. Nominal input voltage: 200-440, output current 1250mA with DALI 2 configurable single-channel, IEEE 1789 flicker recommended practice compliant suitable for super slow motion camera filming, surge level 10kV for both common mode and differential. Connection from mains via terminal blocks. Mains supply must be fused according to local safety regulations. Weight: 5.6 kg.
