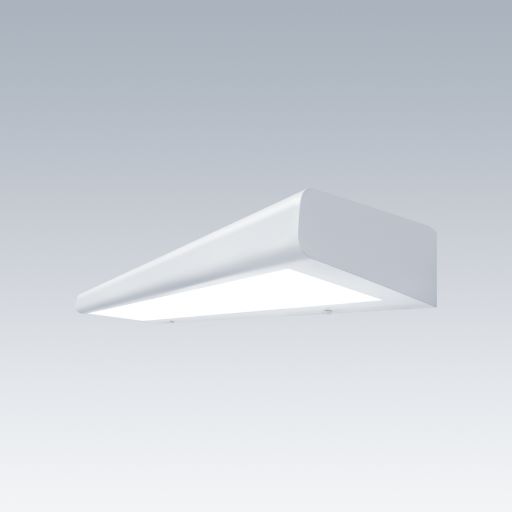

LED bedhead luminaire with independent control of both direct and indirect light

  • High output bedhead luminaire with low glare for hospital ward lighting that complies with LG2: Lighting for healthcare premises (2019)
  • Smooth radiused surfaces to facilitate cleaning and reduction of bacteria traps
  • Direct/Indirect (30/70%) with asymmetric light distribution which can provide the various required lux levels for general ward lighting, general nursing over the bed, patient reading over bedhead/pillow and watch lighting over the bedhead/pillow
  • Smooth opal diffuser with optical film for light control and reduced glare. Curved internal reflector on direct light contributes to the low glare output.
  • Independently controllable/dimmable direct and indirect light - either by DALI or SwitchDim (using 2 x Tridonic one4all drivers)

Materials and Finish

Housing: sheet steel white powder coated
Diffuser: opal acrylic PMMA

Installation and Mounting

Wall mounted with recommended mounting height 1800mm for typical 2.4m – 2.7m ceiling heights. Simple installation with two part install. First - secure back plate with gear tray to wall. Second - use quick fix connectors to connect light engine to gear tray then secure light engine to back plate by tilting into position and securing with safety clip and screws on bottom of light engine.

Specification

LED bedhead luminaire with independent control of both direct and indirect light using DALI or SwitchDIM (using 2 xTridonic one4All drivers). Complies with LG2: Lighting for Healthcare (Ward Lighting). Smooth radiused surfaces to facilitate cleaning and reduction of bacteria traps, Luminaire output 6600lm. Direct/indirect split (30/70%), MacAdam 3, L80 50000h at 25 C, CRI 80. IP40.
As Thorn Cavell

  • New Product
New Product
LumExpress Product
eControl Product

Cavell

Description   TypeWt (kg)SAP Code
CAVELL 6600 830 HFIX L950LED3.2096636060
CAVELL 6600 840 HFIX L950LED7.8096635589
