Cavell / CAVELL 6600 840 HFIX L950


Data Sheet

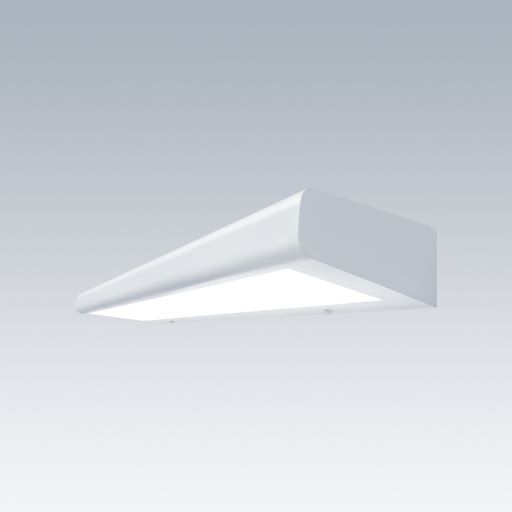

High output bedhead luminaire with low glare for hospital ward lighting that complies with LG2: Lighting for healthcare premises (2019). Class I electrical , IK06, IP40. Electronic, DALI dimmable control gear. Luminaire made of steel sheet in white. Smooth radiused surfaces to facilitate cleaning and reduction of bacteria traps.Diffuser: Opal acrylic PMMA. Independently controllable/dimmable direct and indirect light - either by DALI or SwitchDim.

Dimensions: 930 x 251 x 102 mm
Luminaire input power: 56.5 W
Luminaire luminous flux: 6500 lm
Luminaire efficacy: 115 lm/W
Weight: 7.8 kg

Mode selection
  • Lamp position:IND/DIR - indirect/direct
  • Light Source:LED
  • Luminaire luminous flux*:6500 lm
  • Luminaire efficacy*:115 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x HFIX
  • Luminaire input power*:56.5 W Power factor = 0.94
  • Dimming:DA2 dimmable to 1%
  • LED
  • CE
  • IK06
  • IP40
  • SC1
  • Ta = -20 to +35
  • UKCA
