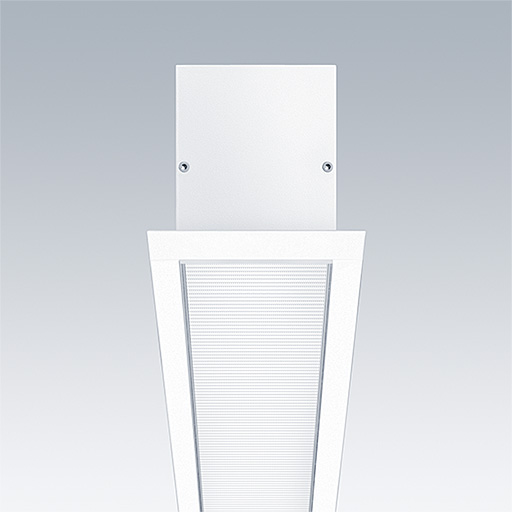

Equaline Channel, standard frame
EQL C L2000 LRO WH F
Article number: 96632021
EAN number: 9010299054548
Technical Data
Electrical Properties
Luminaire input power
34.4 W
Power factor
0.95
Rated voltage
220 - 240 V
Safety Class
SC1
Light Distribution
Light Source
LED
Luminaire luminous flux
3390 lm
Luminaire efficacy
99 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
4000 K HF
Physical Characteristics
Dimensions
2000x96x88 mm
Mounting type
Ceiling recessed
Length
2000 mm
Width
96 mm
Height
88 mm
Weight
4.546 kg
Impact strength
IK05
Degree of protection
IP40
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetRCM Declaration of ConformityCE / UKCA - Declaration of ConformityPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE2D CAD drawing92.62 kB
37.49 kB
737.28 kB
EQL C L2000 LRO WH F
Equaline framed (F) channel with optics for 2nd generation Equaline. Body: powder coated aluminium, suitable for modular or plasterboard ceiling installation. For single and continuous installation. Continuous run with visible joints between optic pieces. Optics: Luminance reducing optic (LRO) with UGR<19 made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.
Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.
Dimensions: 2000 x 96 x 88 mm
Weight: 4.2 kg
