Omega Pro 2 CKITplus, HX optic
OP2 3800-840 CKIT+ HX 3X12
Article number: 92914008
EAN number: 5037319736004
Technical Data
Electrical Properties
EEC
D
Luminaire input power
27.4 W
Power factor
0.97
Standby Power
0.2 W
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 28000654 LCA 35W 150-700mA one4all lp PRE
Safety Class
SC2
Dim Control
Dimming DALI
Light Distribution
Light Source
LED
Luminaire luminous flux
3800 lm
Luminaire efficacy
139 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1197x297x59 mm
Mounting type
Ceiling recessed
Length
1197 mm
Width
297 mm
Height
59 mm
Weight
5.58 kg
Colour
White
Impact strength
IK03
Degree of protection
IP20
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Norms and Standards
Certificates
Downloads
OP2 3800-840 CKIT+ HX 3X12

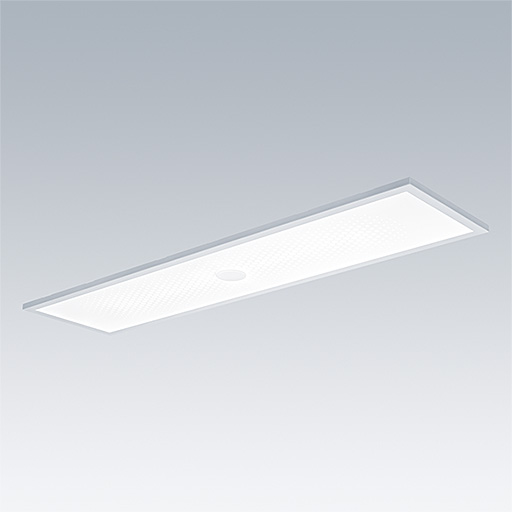

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable. Class II electrical, IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED,
Dimensions: 1197 x 297 x 59 mm
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 139 lm/W
Weight: 5.58 kg
