1. Aquaforce Pro L

DuoProof 2, fixed output

DUOPRF2 5600-840 HF PM O M600Q
Article number: 92981224
EAN number: 9010757085411
Normal purity luminaire M600 40.5W 5750lm 4,000 K
Dim Control
fixed output control gear
Filterable Correlated Colour Temperature
4000 K
Luminaire luminous flux
5750 lm
Find your perfect lighting solution for your project in just a few steps

Technical Data

Electrical Properties
Luminaire input power
40.5 W
Power factor
0.97
Rated voltage
220 - 240 V
Total harmonic distortion (THD)
10 percent
Ballast
Ballast 1: 1 x 28000683 LC 75W 350-1050mA flexC lp EXC
Safety Class
SC1
Dim Control
fixed output control gear
Light Distribution
Light Source
LED
Luminaire luminous flux
5750 lm
Luminaire efficacy
142 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
2
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
598x598x105 mm
Mounting type
Ceiling recessed
Length
598 mm
Width
598 mm
Height
105 mm
Weight
4.65 kg
Impact strength
IK03
Degree of protection
IP65
Cutout Height
135 mm
Cutout Length
577 mm
Cutout Width
584 mm
Maintenance and Protection
Rated Median Useful Life
L95 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
Norms and Standards
Certificates
650°
GLedReP
LLedReP
CE
Electrical class I
IK03
IP50_IP65
Food
UKCA
Drawings
Light Distribution
Dimensional sketch

Downloads

DUOPRF2 5600-840 HF PM O M600Q

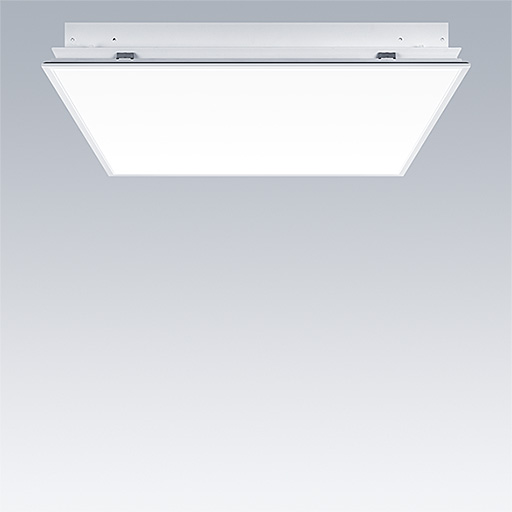

Normal purity ceiling recessed LED luminaire. Electronic, fixed output control gear. Class I electrical, IK03, IP50 upper side of the luminaire, IP65 lower side of the luminaire. Body: sheet steel white, resistant to oil vapours, chemical attack, disinfectants and cleaning agents. Cover: PMMA for chemical resistance in clean rooms and industry applications. Thermoforming technology, frameless design for high demands on hygiene and easy, fast cleaning. Suitable for use in clean rooms of cleanliness class 1 to 9 as per EN ISO 14644-1. Complete with 4000K LED For ceiling where levelling in is required please order NIV Set (22168977), for lay-in ceiling no sets required. For removal of diffuser – please order the suction cup accessory (20935455). ISO and GMP certification of DuoProof 2 is pending. Dimensions: 598 x 598 x 105 mm Luminaire luminous flux: 5750 lm Luminaire efficacy: 142 lm/W Weight: 4.7 kg
