1. AGILIO

Xetaro Linear, dimmable

XETARO L 5500-840 MB HFI
Article number: 96701889
EAN number: 9010757249295
38W 5810lm 4,000 K
Luminous flux
5810 lm
Control
Dimming DALI
Correlated colour temperature
4000 K
See other variants
AccessoriesWhere to buy

Technical Data

Electrical Properties
EEC
D
Luminaire input power
38 W
Rated voltage
220 - 240 V
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
5810 lm
Luminaire efficacy
153 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1572x145x100 mm
Mounting type
Surface mounted
Length
1572 mm
Width
145 mm
Height
100 mm
Weight
4.2 kg
Impact strength
IK10
Degree of protection
IP66
Maintenance and Protection
Rated useful life (B10)
L80 100000 h 25 °C
overviewFeatures_indoor
Correlated colour temperature
4000 K
Luminous flux
5810 lm
Luminaire input power
38 W
Degree of protection
IP66
Mounting type
Surface mounted
Norms and Standards
Certificates
Ta=-20°C_to_60°C
CE
IK10
IP66
CB
EX
UKCA
Drawings
Light Distribution
Dimensional sketch

Downloads

Accessories

Xetaro Linear, dimmable

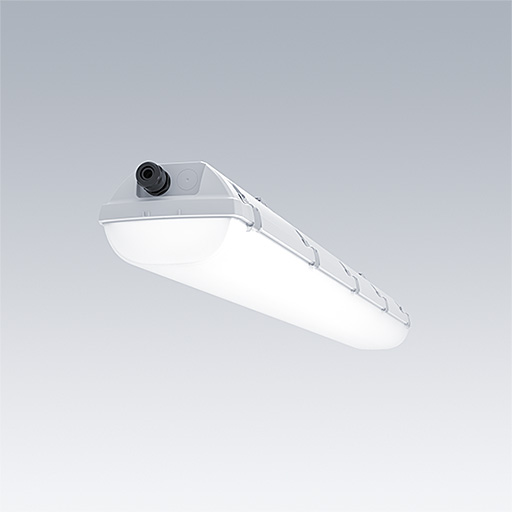

96701889 XETARO L 5500-840 MB HFI Zone 2/22, Category 3 ATEX Certificated LED linear luminaire designed for tough environments. With IP66 protection from dust and water. Impact strength: IK10 body that withstands up to 20 joules impact. Constructed from a polycarbonate body and translucent polycarbonate diffuser with  stainless steel clips that are supplied with tamper resistant screws. Surface and suspension installation with supplied quick fit surface mounting clips, cable or chain suspension. CRI80 and 4000K as standard with HF and HFI drivers and 3 hour emergency options available. Certification code Ex II 3G Ex nR IIC T6 Gc Ex II 3D Ex tc IIIC T70°C Dc Dimensions: 1572 x 145 x 100 mm Luminaire luminous flux: 5810 lm Luminaire efficacy: 153 lm/W Weight: 4.2 kg
