Chalice 3 200, wallwasher
CHAL3 200 3000-930 EHF WW RSB
Article number: 93903103
EAN number: 4053167598008
Technical Data
Electrical Properties
EEC
D
Luminaire input power
27.6 W
Power factor
0.93
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 28003812 LC 25/200-650/38 NF SR EXC3
Safety Class
SC2
Dim Control
Fixed output
Light Distribution
Light Source
LED
Luminaire luminous flux
2860 lm
Luminaire efficacy
104 lm/W
Filterable Correlated Colour Temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[223]x[96] mm
Mounting type
Ceiling recessed
Length
223 mm
Width
223 mm
Height
96 mm
Weight
0.963 kg
Impact strength
IK06
Degree of protection
IP54_IP20
Cutout Diameter
200 mm
Recessheight
91 mm
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
C - Closed Top Reflector
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetCircuit breaker dataRCM Declaration of ConformityCE / UKCA - Declaration of ConformityCB CertificatePhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file335.87 kB
CHAL3 200 3000-930 EHF WW RSB

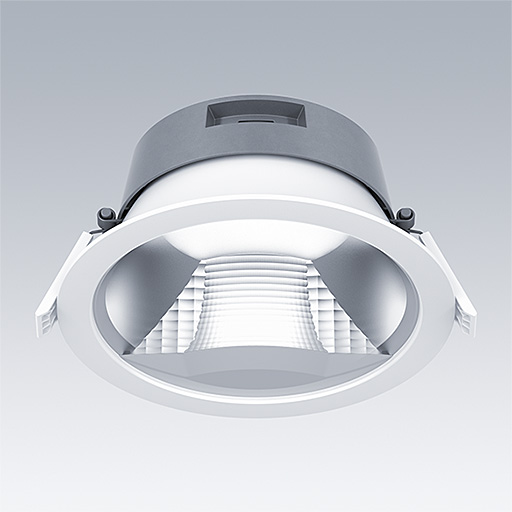

A highly efficient and sustainable LED downlight with low height with asymmetrical beam for vertical illumination. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø200mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: Die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam. Class II electrical, IP54_IP20. Complete with 3000K LED
Installation in concrete ceilings not permitted.
Dimensions: Ø223 x 96 mm
Luminaire luminous flux: 2860 lm
Luminaire efficacy: 104 lm/W
Weight: 0.96 kg
