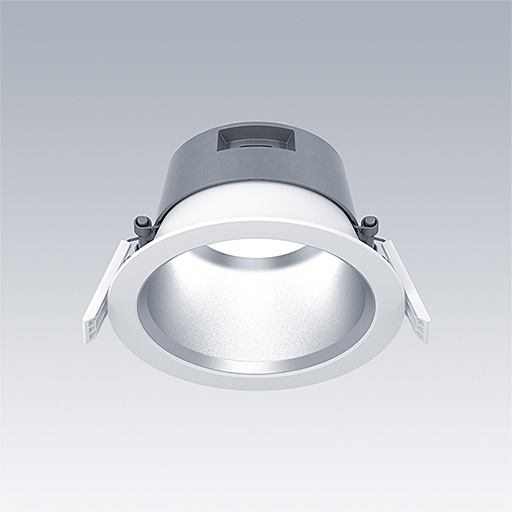

Chalice 3 150
CHAL3 150 1400-940 EHF RSB
Article number: 92989224
EAN number: 4053167578130
Technical Data
Electrical Properties
EEC
D
Luminaire input power
13 W
Power factor
0.81
Rated voltage
220 - 240 V
Ballast
Ballast 1: 1 x 28003812 LC 25/200-650/38 NF SR EXC3
Dim Control
Fixed output
Light Distribution
Light Source
LED
Luminaire luminous flux
1320 lm
Luminaire efficacy
102 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[174]x[94] mm
Mounting type
Ceiling recessed
Length
174 mm
Width
174 mm
Height
94 mm
Weight
0.679 kg
Colour
White
Cutout Diameter
150 mm
Recessheight
89 mm
Reflector Color
Die-cast
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
C - Closed Top Reflector
Downloads
CHAL3 150 1400-940 EHF RSB
A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: Die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam. Class II electrical, IP54_IP20. Complete with 4000K LED
Dimensions: Ø174 x 94 mm
Luminaire luminous flux: 1320 lm
Luminaire efficacy: 102 lm/W
Weight: 0.68 kg
