Chalice 3 / CHAL3 150 3000-830 HFIX RMB


Data Sheet

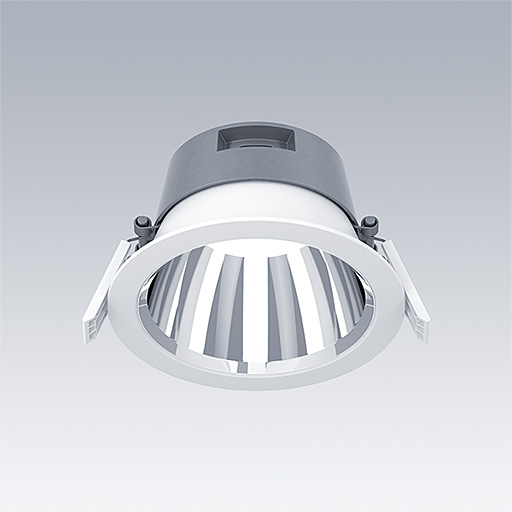

A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, DALI-2 dimmable LED driver with DC functionality, adjustable 15-100%, NFC configurable, SwitchDIM compatible.Loop in - loop out possible. Body: die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in high glossy finish for improved glare control in office applications. Class II electrical (this product is not earthed), IP54_IP20. Complete with 3000K LED

Installation in concrete ceilings not permitted.

Dimensions: Ø174 x 94 mm
Luminaire input power: 27.3 W
Luminaire luminous flux: 3193 lm
Luminaire efficacy: 117 lm/W
Weight: 0.69 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3193 lm
  • Luminaire efficacy*:117 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003811 LC 25/200-650/38 o4a NF SR EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:27.3 W Power factor = 0.97
  • Dimming:Dali2Dim dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • NoIsol
  • GLedReP
  • 850°
  • Hfree
  • IK09
  • IP54_IP20
  • LLedReP
  • RG1
  • SC2
  • Ta=25
  • UKCA
