Punch
Classic Simplicity: Versatility combined with a high-quality look and feel.
- Design: Classic, linear design comprising a pleasing and timeless aesthetic. High quality materials underline the value of the product.
- Light distribution: Direct, direct/indirect (60/40% or 50/50%) and asymmetric light distribution, a double parabolic aluminium and a LRO optic version, as well as UGR <16 make PUNCH a great choice for a wide field of application.
- Installation: Suspended and surface-mounted variants plus the possibility of continuous row and wall mounting are important features to provide maximum flexibility.
- Smart design features for fast and easy installation and maintenance enhance the user experience.
- Variants for every need: CRI80 or CRI90, emergency mode, pull cord switch, infills of different sizes for continuous row or the choice between LRO and louvre optic open up lots of possibilities for various situations.
Materials and Finish
Housing and end caps: Sheet steel, white powder coated
Double parabolic louvres: High reflective aluminum
Diffusers: Opal polycarbonate (PC)
LRO: Microprismatic polymethylmethacrylate (PMMA)
Installation and Mounting

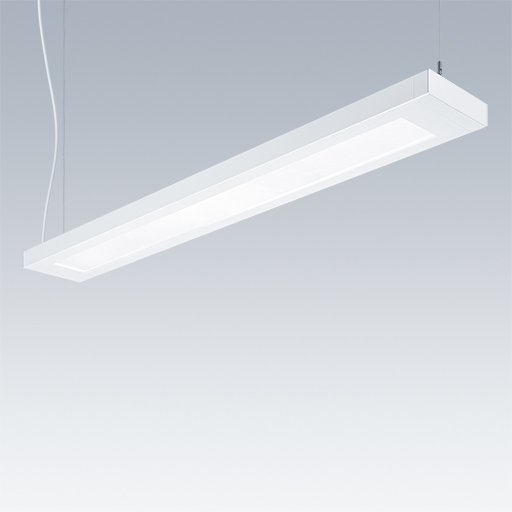

Suspended direct/indirect: Slidable suspension components for easy mounting, suspensions to be ordered separately (22171581), pre-installed power cord
Suspended direct only: Combine your desired surface-mounted LRO or LV-Variant with the optional suspension accessories (22171581 & 22171349) to be ordered separately

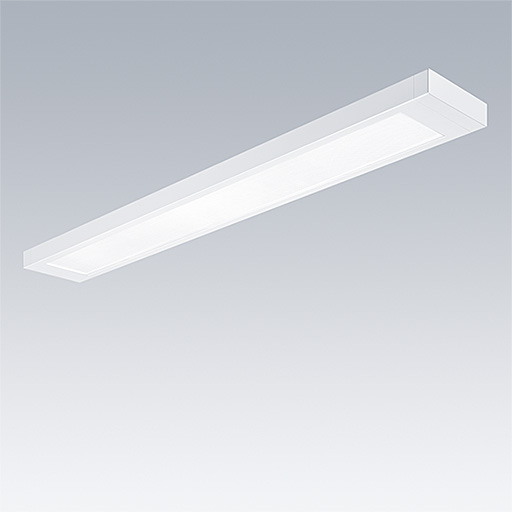

Surface: Suitable for direct surface mounting
Continuous row & Infills: Optional accessories to link individual suspended luminaires together
Wall: Optional wall mounting bracket accessory compatible with all versions
Specification
To specify state:
A classic designed LED luminaire with double parabolic aluminium louvres or PMMA LRO optics. Direct, direct/indirect and asymmetric light distribution. Surface-mounted, suspended, continuous row (with optional infills) or wall mounting possibility. Direct/indirect split of 60/40%, 3000/4000K colour temperature, CRI >80 or CRI >90, MacAdam 3, IK04, a lifetime of 70 000h @ L80 Ta 25°C, up to UGR <19 and efficacy of up to 133 lm/W. HFIX controllable, pull cord switch, E3 or E3D options available. Standard colour powder coated sheet steel in white (close to RAL9016) - other colours (e.g. silver) on request.
As Thorn Punch
- New Product
▼ Punch
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
PUNCH 3 LRO MSC 3200-830 L12 HF | LED | 3.50 | 96636043 | ||||||
PUNCH 3 LRO MSC 3200-840 L12 HF | LED | 3.50 | 96636044 | ||||||
PUNCH 3 LRO MSC 3200-930 L12 HF | LED | 3.50 | 96636033 | ||||||
PUNCH 3 LRO MSC 3200-940 L12 HF | LED | 3.50 | 96636037 | ||||||
PUNCH 3 LRO MSC 3800-830 L15 HF | LED | 3.80 | 96636045 | ||||||
PUNCH 3 LRO MSC 3800-840 L15 HF | LED | 3.80 | 96636046 | ||||||
PUNCH 3 LRO MSC 3800-930 L15 HF | LED | 3.80 | 96636034 | ||||||
PUNCH 3 LRO MSC 3800-940 L15 HF | LED | 3.80 | 96636038 | ||||||
PUNCH 3 LV MSC 4000-830 L12 HF | LED | 3.50 | 96636019 | ||||||
PUNCH 3 LV MSC 4000-840 L12 HF | LED | 3.50 | 96636020 | ||||||
PUNCH 3 LV MSC 4000-930 L12 HF | LED | 3.50 | 96636013 | ||||||
PUNCH 3 LV MSC 4000-940 L12 HF | LED | 3.50 | 96636009 | ||||||
PUNCH 3 LV MSC 6000-830 L15 HF | LED | 3.80 | 96636021 | ||||||
PUNCH 3 LV MSC 6000-840 L15 HF | LED | 3.80 | 96636022 | ||||||
PUNCH 3 LV MSC 6000-930 L15 HF | LED | 3.80 | 96636014 | ||||||
PUNCH 3 LV MSC 6000-940 L15 HF | LED | 3.80 | 96636010 |
▼ Punch, surface, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
<PUNCH 3 LRO MSC 3200-830 L12 HFIX | LED | 6.00 | 96635385 | ||||||
<PUNCH 3 LRO MSC 3800-830 L15 HFIX | LED | 6.50 | 96635387 | ||||||
PUNCH 3 LRO MSC 3200-840 L12 HFIX | LED | 6.00 | 96635386 | ||||||
PUNCH 3 LRO MSC 3200-930 L12 HFIX | LED | 3.50 | 96636049 | ||||||
PUNCH 3 LRO MSC 3200-940 L12 HFIX | LED | 6.00 | 96635391 | ||||||
PUNCH 3 LRO MSC 3800-840 L15 HFIX | LED | 6.50 | 96635388 | ||||||
PUNCH 3 LRO MSC 3800-930 L15 HFIX | LED | 3.80 | 96636050 | ||||||
PUNCH 3 LRO MSC 3800-940 L15 HFIX | LED | 6.50 | 96635392 | ||||||
PUNCH 3 LV MSC 4000-830 L12 HFIX | LED | 3.50 | 96635735 | ||||||
PUNCH 3 LV MSC 4000-840 L12 HFIX | LED | 3.50 | 96635736 | ||||||
PUNCH 3 LV MSC 4000-930 L12 HFIX | LED | 3.50 | 96636025 | ||||||
PUNCH 3 LV MSC 4000-940 L12 HFIX | LED | 3.80 | 96635717 | ||||||
PUNCH 3 LV MSC 6000-830 L15 HFIX | LED | 3.80 | 96635737 | ||||||
PUNCH 3 LV MSC 6000-840 L15 HFIX | LED | 3.80 | 96635738 | ||||||
PUNCH 3 LV MSC 6000-930 L15 HFIX | LED | 3.80 | 96636026 | ||||||
PUNCH 3 LV MSC 6000-940 L15 HFIX | LED | 3.80 | 96635718 |
▼ Punch, surface, dimmable emergency
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
<PUNCH 3 LRO MSC 3200-830 L12 HFIX E3 | LED | 6.20 | 96635401 | ||||||
<PUNCH 3 LRO MSC 3200-840 L12 HFIX E3 | LED | 6.20 | 96635402 | ||||||
PUNCH 3 LRO MSC 3200-930 L12 HFIX E3 | LED | 3.50 | 96636053 | ||||||
PUNCH 3 LRO MSC 3200-940 L12 HFIX E3 | LED | 3.50 | 96635739 | ||||||
PUNCH 3 LRO MSC 3800-830 L15 HFIX E3 | LED | 6.80 | 96635403 | ||||||
PUNCH 3 LRO MSC 3800-840 L15 HFIX E3 | LED | 6.80 | 96635404 | ||||||
PUNCH 3 LRO MSC 3800-930 L15 HFIX E3 | LED | 3.80 | 96636052 | ||||||
PUNCH 3 LRO MSC 3800-940 L15 HFIX E3 | LED | 6.80 | 96635408 | ||||||
PUNCH 3 LV MSC 4000-830 L12 HFIX E3 | LED | 3.50 | 96635727 | ||||||
PUNCH 3 LV MSC 4000-840 L12 HFIX E3 | LED | 3.50 | 96635728 | ||||||
PUNCH 3 LV MSC 4000-930 L12 HFIX E3 | LED | 3.50 | 96636029 | ||||||
PUNCH 3 LV MSC 4000-940 L12 HFIX E3 | LED | 3.80 | 96635721 | ||||||
PUNCH 3 LV MSC 6000-830 L15 HFIX E3 | LED | 3.80 | 96635729 | ||||||
PUNCH 3 LV MSC 6000-840 L15 HFIX E3 | LED | 3.80 | 96635730 | ||||||
PUNCH 3 LV MSC 6000-930 L15 HFIX E3 | LED | 3.80 | 96636030 | ||||||
PUNCH 3 LV MSC 6000-940 L15 HFIX E3 | LED | 3.80 | 96635722 |
▼ Punch, suspended
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
<PUNCH 3 ASYM MSP 2200-830 L12 HF | LED | 3.50 | 96630502 | ||||||
<PUNCH 3 ASYM MSP 2200-840 L12 HF | LED | 3.50 | 96630503 | ||||||
PUNCH 3 ASYM MSP 2200-930 L12 HF | LED | 3.50 | 96636057 | ||||||
PUNCH 3 ASYM MSP 2200-940 L12 HF | LED | 3.50 | 96636056 | ||||||
PUNCH 3 LRO MSP 5500-830 L12 HF | LED | 3.50 | 96636039 | ||||||
PUNCH 3 LRO MSP 5500-840 L12 HF | LED | 3.50 | 96636040 | ||||||
PUNCH 3 LRO MSP 5500-930 L12 HF | LED | 3.50 | 96636031 | ||||||
PUNCH 3 LRO MSP 5500-940 L12 HF | LED | 3.50 | 96636035 | ||||||
PUNCH 3 LRO MSP 6600-830 L15 HF | LED | 3.80 | 96636041 | ||||||
PUNCH 3 LRO MSP 6600-840 L15 HF | LED | 3.80 | 96636042 | ||||||
PUNCH 3 LRO MSP 6600-930 L15 HF | LED | 3.80 | 96636032 | ||||||
PUNCH 3 LRO MSP 6600-940 L15 HF | LED | 3.80 | 96636036 | ||||||
PUNCH 3 LV MSP 5500-830 L12 HF | LED | 3.50 | 96636015 | ||||||
PUNCH 3 LV MSP 5500-840 L12 HF | LED | 3.50 | 96636016 | ||||||
PUNCH 3 LV MSP 5500-930 L12 HF | LED | 3.50 | 96636011 | ||||||
PUNCH 3 LV MSP 5500-940 L12 HF | LED | 3.50 | 96636007 | ||||||
PUNCH 3 LV MSP 6600-830 L15 HF | LED | 3.80 | 96636017 | ||||||
PUNCH 3 LV MSP 6600-840 L15 HF | LED | 3.80 | 96636018 | ||||||
PUNCH 3 LV MSP 6600-930 L15 HF | LED | 3.80 | 96636012 | ||||||
PUNCH 3 LV MSP 6600-940 L15 HF | LED | 3.80 | 96636008 |
▼ Punch, suspended, dimmable
▼ Punch, suspended, dimmable emergency
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
<PUNCH 3 LRO MSP 5500-830 L12 HFIX E3 | LED | 6.20 | 96635397 | ||||||
<PUNCH 3 LRO MSP 6600-830 L15 HFIX E3 | LED | 6.80 | 96635399 | ||||||
<PUNCH 3 LRO MSP 6600-940 L15 HFIX E3 | LED | 6.80 | 96635406 | ||||||
PUNCH 3 LRO MSP 5500-840 L12 HFIX E3 | LED | 6.20 | 96635398 | ||||||
PUNCH 3 LRO MSP 5500-840 L12 HFIX E3D | LED | 6.20 | 96635405 | ||||||
PUNCH 3 LRO MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636054 | ||||||
PUNCH 3 LRO MSP 5500-940 L12 HFIX E3 | LED | 3.80 | 96635740 | ||||||
PUNCH 3 LRO MSP 6600-840 L15 HFIX E3 | LED | 6.80 | 96635400 | ||||||
PUNCH 3 LRO MSP 6600-840 L15 HFIX E3D | LED | 6.20 | 96635407 | ||||||
PUNCH 3 LRO MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636051 | ||||||
PUNCH 3 LV MSP 5500-830 L12 HFIX E3 | LED | 3.50 | 96635723 | ||||||
PUNCH 3 LV MSP 5500-840 L12 HFIX E3 | LED | 3.80 | 96635724 | ||||||
PUNCH 3 LV MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636027 | ||||||
PUNCH 3 LV MSP 5500-940 L12 HFIX E3 | LED | 3.50 | 96635719 | ||||||
PUNCH 3 LV MSP 6600-830 L15 HFIX E3 | LED | 3.50 | 96635725 | ||||||
PUNCH 3 LV MSP 6600-840 L15 HFIX E3 | LED | 3.80 | 96635726 | ||||||
PUNCH 3 LV MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636028 | ||||||
PUNCH 3 LV MSP 6600-940 L15 HFIX E3 | LED | 3.50 | 96635720 |
▼ Punch accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
<PUNCH 3 LV INFILL L15 | 2.85 | 96635745 | |||||||
CEILING ROSE ROUND ASI/ASQ3 WH | 0.20 | 22171581 | |||||||
PUNCH 3 ASYM WALL BRACKET WH | 0.75 | 96667068 | |||||||
PUNCH 3 EMERGENCY BATTERY SPARE | 0.22 | 96636058 | |||||||
PUNCH 3 LRO C MOUNT SET | 1.20 | 96635433 | |||||||
PUNCH 3 LRO INFILL L15 | 1.50 | 96635435 | |||||||
PUNCH 3 LRO INFILL L9 | 1.20 | 96635434 | |||||||
PUNCH 3 LV C MOUNT SET | 0.50 | 96635743 | |||||||
PUNCH 3 LV INFILL L9 | 1.85 | 96635744 | |||||||
SUSP CEILING-MOUNT ROSE HOLD SET WH | 0.10 | 22171145 | |||||||
SUSP WIRE ASH/ASI/ASQ L3000 SET | 0.15 | 22171348 |
