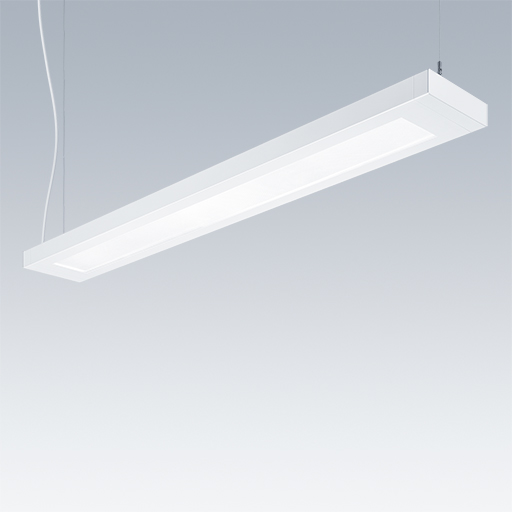

Punch, suspended, dimmable
PUNCH 3 LRO MSP 5500-940 L12 HFIX
Article number: 96635389
EAN number: 9010299711489
Technical Data
Electrical Properties
EEC
D
Luminaire input power
48.9 W
Rated voltage
220 - 240 V
Safety Class
SC1
Dim Control
Dimming DALI
Light Distribution
Light Source
LED
Luminaire luminous flux
5371 lm
Luminaire efficacy
110 lm/W
Filterable Correlated Colour Temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1262x162x50 mm
Mounting type
Suspended
Length
1262 mm
Width
162 mm
Height
50 mm
Weight
6 kg
Colour
White
Degree of protection
IP20
Maintenance and Protection
Rated Median Useful Life
L80 70000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file675.84 kB
PUNCH 3 LRO MSP 5500-940 L12 HFIX
A slim, suspended luminaire with direct/indirect distribution. DALI dimmable Electronic,. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Light guided via backlit multilayer PMMA LRO luminance reducing optic with UGR <19, closed optical system to prevent damage from electrostatic discharge, ideal for schools and offices. Class I electrical, IP20, Impact strength: IK03. Electrical connection via pre-installed power cord (2.5m). Complete with 4000K LED.
Y-Suspension connector included - Suspension cord with ceiling rose to be ordered separately (22171581).
Dimensions: 1262 x 162 x 50 mm
Luminaire luminous flux: 5371 lm
Luminaire efficacy: 110 lm/W
Weight: 6 kg
