Diffusalux / DIFF 3 5000-840 HF E3 MWS L1500 LOS

96633569 / DF5000ZSE

Data Sheet

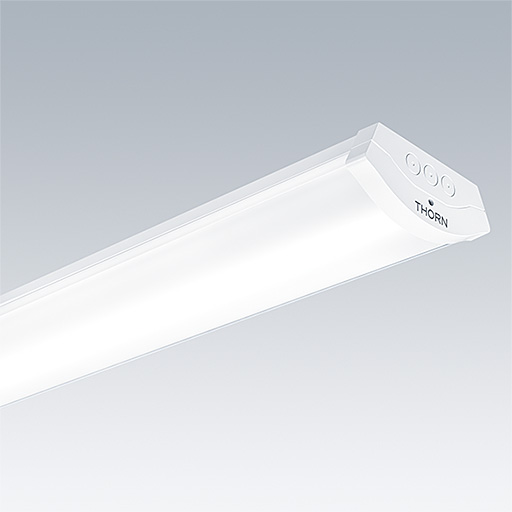

A surface mounted, LED luminaire. Fixed output LED driver with 3 hour, manual test, emergency lighting circuit. Equipped with microwave sensor and daylight hold-off function for on/off control. Class I electrical, IP40. Body: painted steel. End caps: polycarbonate with a curved, extruded opal polycarbonate diffuser. Ø21.5mm cable entry hole in the centre of the back spine. Standard BESA fixings at 600mm centres. Piano key terminal block. Complete with 4000K LED. Lumen output can be selected by internal link/switch. HF versions can select the following: 3050lm (LO) / 4750lm (ME) / 6300lm (HI). HFIX versions can select the following: 3250lm (LO) / 5500lm (ME). Default setting is Medium mode. For exact photometric and power information – please visit website and select drop down with LO / ME / HI modes.

Dimensions: 1490 x 200 x 81 mm
Weight: 2.95 kg

Mode selection
  • Lamp position:ME - Medium mode
  • Light Source:LED
  • Luminaire luminous flux*:4741 lm
  • Total emergency luminous flux:251 lm
  • Luminaire efficacy*:109 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:43.5 W Power factor = 0.93
  • Dimming:FIX
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedReP
  • 650°
  • IK06
  • IP40
  • LLedReP
  • SC1
  • Ta=25

Photometry

Photometric configuration

CalcExpress
