  • Diffusalux
  • Diffusalux

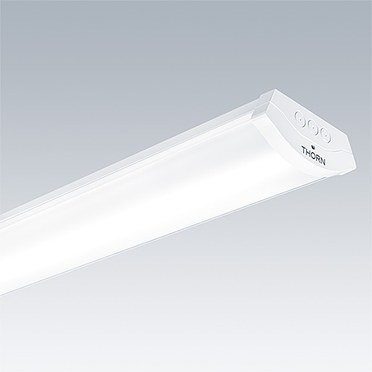

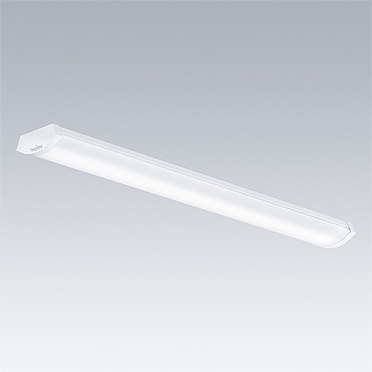

Curved profile linear luminaire with opal diffuser for surface mounting

  • Curved opal diffuser in tough polycarbonate for specific light control
  • Lumen output switch (LOS) for individual control of wattage/lumen output
  • Lockable polycarbonate end caps
  • Sealed to IP40

Materials and Finish

Body and gear: white steel
End caps: polycarbonate

Diffuser: opal polycarbonate extrusion

Installation and Mounting

Cable entry in the centre of the back spine (Ø21,5mm)
Standard BESA fixings,
Piano key terminal block for easy installation.


To specify state:
Surface mounted, IP40 LED luminaire with curved polycarbonate diffuser retained along its length by screwed on end caps, dimmable.
As Thorn Diffusalux

New Product
LumExpress Product
eControl Product



Description   Catalogue No.Wt (kg)SAP Code
WIRE SUSPENSION KIT 1,5MWSPK15000.1596204619
