Voyager Style / VOYAGER STYLE 115 MS-WF15 ECC SM-S WH
96222365
▼ Data Sheet

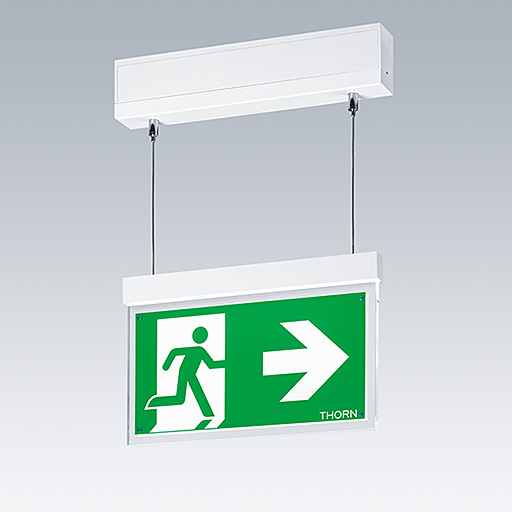

Ultra slim LED escape sign luminaire for suspended, wall or ceiling mounting; recessed ceiling mounting possible with optional recessed ceiling frame; Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire; ; housing made of polycarbonate white; luminaire easy to install; Quick fit terminal block, through wiring possible up to 2,5 mm²; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 23 m; mounting of signs with discrete mounting pins; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region; Power supply: 220/240 V AC; Luminaire input power: 5 W; degree of protection: IP40, class of protection: Class II electrical (this product is not earthed); Impact strength: Impact strength: IK03; Dimensions: 265 x 37 x 57 mm; weight: 0.96 kg
- CE
- IK03
- IP40
- Ta-10-40
