Voyager Star / VOYAGER STAR CON ECP P WH

96638131

Data Sheet

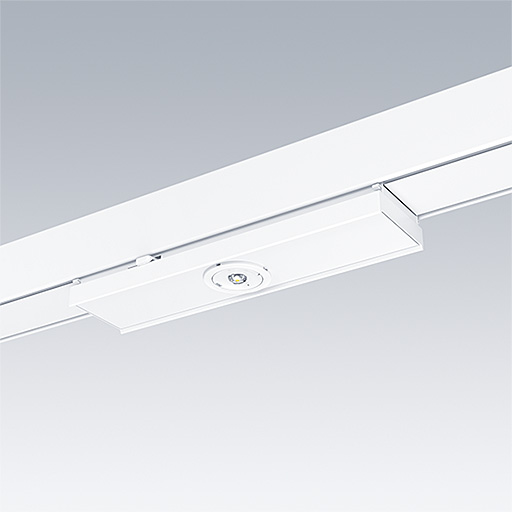

LED safety luminaire for toolfree mounting on Thorn Contus track system. Optics rotatable and fixable in 45° steps.
Supplied with a set of changeable optics ESC (escape route), ANT (antipanic) and HC (high ceiling).
Housing made of polycarbonate (PC) white.
Luminaire for eBox emergency system with Powerline communication.
Maintained or non-maintained operation selectable via connected system.
Centralized monitoring via connected eBox emergency system.
Luminaire input power emergency mode @230VDC: 3,9W, power factor 1
Luminaire input power maintained @230VAC: 2,9W, power factor 0,57; Luminaire input power non-maintained @230VAC: < 0,3W

Vin: 220/240V AC +/-10% or 176-280V DC Degree of protection: IP42
Ta=0°C to +40°C Impact strength: IK04
Weight: 0.48 kg Class II electrical

Spare Parts:
59013937 VOYAGER STAR ECP CONVERTER
59013940 VOYAGER STAR LENSES SET ANT/ESC/SPOT WH

Mode selection
    • CE
    • IK04
    • IP42
    • SC2
    • UKCA
