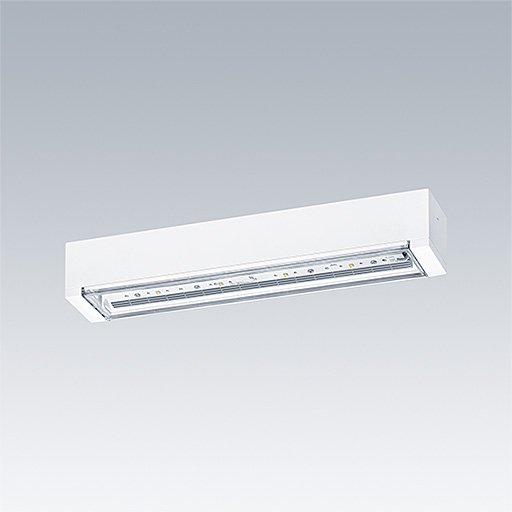

Voyager One Surface mounted

VOYAGER ONE P MS ANT E3D WH IP65
Article number: 96631598
EAN number: 9010299021403
Emergency luminaire 4.8W 336lm 6,500 K
Filterable Correlated Colour Temperature
6500 K
Luminaire luminous flux
336 lm

Technical Data

Electrical Properties
EEC
x
Luminaire input power
4.8 W
Power factor
0.79
Standby Power
1.2 W
Rated voltage
180 - 264 V
Safety Class
SC2
Emergency included
true
Light Distribution
Light Source
LED
Luminaire luminous flux
336 lm
Luminaire efficacy
70 lm/W
Filterable Correlated Colour Temperature
6500 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
80
Light Distribution
STD - standard
Total emergency luminous flux
227 lm
Beam Angle
anti-panic
Physical Characteristics
Dimensions
336x54x59 mm
Mounting type
Surface mounted
Length
336 mm
Width
54 mm
Height
59 mm
Weight
0.66 kg
Impact strength
IK03
Degree of protection
IP65
Service life rating
3 h
Maintenance and Protection
Rated Median Useful Life
L90 50000 h Rated median useful life 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
Norms and Standards
Certificates
Ta=0°C_to_+35°C
CE
SC2 - Protection Class 2
IK03
IP65
Drawings
Light Distribution
Dimensional sketch

Downloads

VOYAGER ONE P MS ANT E3D WH IP65

Slim IP65 LED emergency lighting luminaire for surface, wall or ceiling mounting; Click adapter for wall surface mounting within scope of delivery; recessed ceiling mounting possible with optional recessed ceiling frame; Luminaire with local battery supply for 3 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; Non-maintained and maintained mode settable via jumper and NFC interface; addressing also alternatively possible visually or via EZ-addressing; ; additional click-optics optimised for escape routes and open areas from higher mounting heights available; Click in legends for viewing from a maximum distance of 23 m and 30 m available to convert to escape sign luminaire; housing made of polycarbonate white; cover mode of transparent polycarbonate; Tool-less 'click' mounting after fitting the housing base; Quick fit terminal block, through wiring possible up to 2,5 mm²; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; Power supply: 220/240 V AC; degree of protection: IP65, class of protection: SC2; Impact strength: IK03; Dimensions: 336 x 54 x 59 mm; weight: 0.6 kg Self-contained emergency luminaires rely on long-lasting batteries. Thorn batteries are robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
