Contrast Small
CONT3 4L50-822-40 WB NG IO ANT
Article number: 96633441
EAN number: 5037319770961
Technical Data
Electrical Properties
EEC
F
Luminaire input power
7 W
Power factor
0.6
Rated voltage
100 - 240 V
Safety Class
SC2
Light Distribution
Light Source
LED
Luminaire luminous flux
293 lm
Luminaire efficacy
42 lm/W
Filterable Correlated Colour Temperature
2200 - 4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
Ø[83]x[103] mm
Mounting type
Floodlight
Length
83 mm
Width
83 mm
Height
103 mm
Weight
1.05 kg
Impact strength
IK08
Degree of protection
IP66
Maintenance and Protection
Rated Median Useful Life
L70 50000 h Rated median useful life 25 °C
Norms and Standards
Certificates
Downloads
Design Data
DatasheetCombination DatasheetFamily datasheetRCM Declaration of ConformityCE / UKCA - Declaration of ConformityPhotometric LDTPhotometric IESTransfer to DIALuxTransfer to ReluxTransfer to ecoCALC, VIVALDI, DALEC or HILITE3D BIM Revit file483.33 kB
Accessories
CONT3 4L50-822-40 WB NG IO ANT

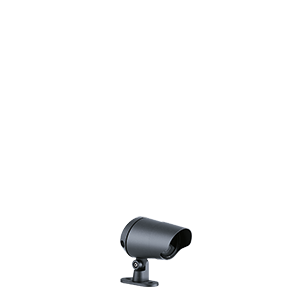

A small architectural Bracket mounted LED floodlight with 4 LEDs driven at 500mA and a wide beam distribution. ,. Pre-wired with IP66 connector, gear box to be ordered separately. Class II electrical, IP66, IK08. Body: Die-cast, powder coated, textured anthracite (close to RAL7043). Compatible with coastal environments. Glass: tempered, 5mm thick. Gasket: EPDM. Screws: geomet. Complete with 2200-4000K balanced white LEDs
{Wireless Definition}, {Wireless Frequency}, {Wireless TransPower}
Dimensions: Ø83 x 103 mm
Luminaire luminous flux: 293 lm
Luminaire efficacy: 42 lm/W
Weight: 1.03 kg
