EROA SX is a surface mount product with remote driver designed to create scenes on façade, bridges and monuments

  • Available in four lengths with a choice of single colour : 2700K, 3000K, 4000K.
  • Designed for clean and discreet surface installation, allowing seamless integration on façades, bridges, and architectural structures.
  • Precision-engineered optics delivers continuous and uniform illumination across lengths exceeding 12 metres, ensuring smooth light lines without dark zones or visible transitions.
  • Internal optical film and cowl accessory provides superior visual comfort by controlling light spill and reducing glare at the source.
  • External drivers to power multiple luminaires, reducing installation costs and simplifying maintenance — ideal for budget-conscious large-scale projects.
  • Four types of adjustable brackets offer flexible mounting and fine beam orientation, giving designers the ability to precisely target lighting onto architectural features or structural elements.

Materials and Finish

Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating

Body: extruded aluminium (6063) and end cap in machined aluminium
Enclosure: 6mm toughened glass
External screws: A2 with zinc coating treatment
Finish: BK - RAL9005 ; SI : RAL9022

Installation and Mounting

Mouting on surface possible different bracket :

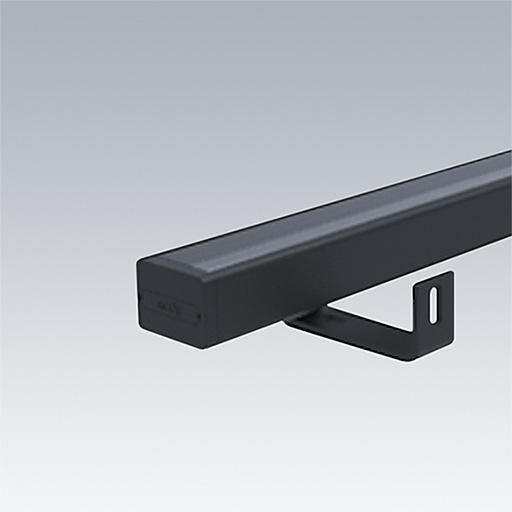

Standard Bracket (15° orientation)

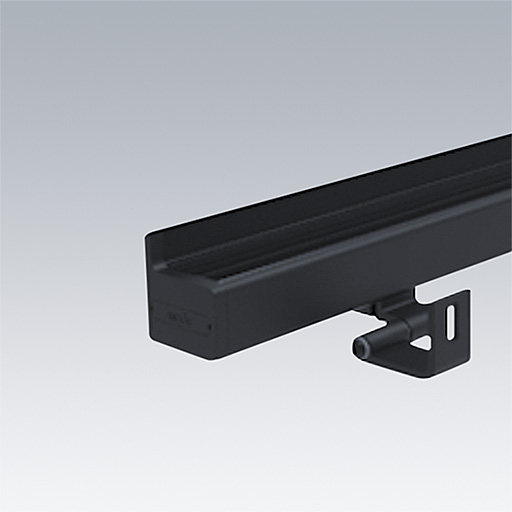

Adjustable Bracket (105° orientation - 60° orientation)
Long Arm Bracket (80° orientation)

Pre-wired with 2m PVC 0,5mm² cable

Remote Driver to be ordered separately

More details on How To Spec Guide

Specification

To specify state:

Slim linear surface-mounted luminaire, designed for architectural façades, bridges, and monuments. Eroa Sx features a remote driver (sold separately), allowing for a discreet and minimal visual presence on the structure.
Available in four lengths and two finishes, with a choice of static white (2700K, 3000K, 4000K). The luminaire delivers an uniform light projection beyond 12 metres, ideal for large-scale architectural lighting.
Control options include DMX and DALI, depending on the driver selected. An internal anti-glare louvre is available to enhance visual comfort.
Durability: IP66 and IK09 rated, suitable for demanding outdoor environments. Multiple bracket options (standard, adjustable, long-arm) ensure flexible and precise installation.

As Thorn EROA SX

New Product
LumExpress Product
eControl Product

Eroa SX, L03

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
ER SX L03 450-830 M BK AJ 6610500LED1.0021042695
ER SX L03 450-830 M BK STD 6610500LED1.0021042710
ER SX L03 450-830 N BK AJ 6610530LED1.0021042727
ER SX L03 450-830 N BK STD 6610530LED1.0021042742
ER SX L03 450-830 WF BK AJ 6610460LED1.0021042759
ER SX L03 450-830 WF BK STD 6610460LED1.0021042774

Eroa SX, L06

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
ER SX L06 900-830 M BK AJ 66201010LED1.4921049413
ER SX L06 900-830 M BK STD 66201010LED1.4921049428
ER SX L06 900-830 N BK AJ 66201060LED1.4921049444
ER SX L06 900-830 N BK STD 66201060LED1.4921049458
ER SX L06 900-830 WF BK AJ 6620910LED1.4921049474
ER SX L06 900-830 WF BK STD 6620910LED1.4921049489

Eroa SX, L09

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
ER SX L09 1400-830 M BK AJ 66301510LED2.2321049688
ER SX L09 1400-830 M BK STD 66301510LED2.2321049703
ER SX L09 1400-830 N BK AJ 66301590LED2.2321049719
ER SX L09 1400-830 N BK STD 66301590LED2.2321049734
ER SX L09 1400-830 WF BK AJ 66301370LED2.2321049748
ER SX L09 1400-830 WF BK STD 66301370LED2.2321049763

Eroa SX, L12

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
ER SX L12 1900-830 M BK AJ 66392010LED2.9721050320
ER SX L12 1900-830 M BK STD 66392010LED2.9721050334
ER SX L12 1900-830 N BK AJ 66392110LED2.9721050349
ER SX L12 1900-830 N BK STD 66392110LED2.9721050363
ER SX L12 1900-830 WF BK AJ 66391820LED2.9721050379
ER SX L12 1900-830 WF BK STD 66391820LED2.9721050394

Eroa SX, Driver (mandatory)
