  • PopPack
  • PopPack

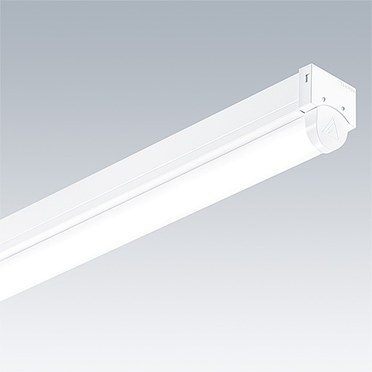

The original PopPack batten with integrated LED technology for ultra-low energy consumption

  • LED one for one replacement for single and twin T8/T5 (35W up to 80W) fluorescent battenLED one for one replacement for single and twin T8/T5 fluorescent battens
  • Up to 153lm/W - exceeding building regulation requirements
  • Optional screws can be added to end caps to lock the housing to ensure increased security
  • Additional savings can be achieved via DALI control and an integral PIR sensor.
  • Versions adapted for mounting onto Contus trunking available.

Materials and Finish

Batten: pre-coated roll form steel, white (RAL9016)
End caps/lamp holders: injection moulded polycarbonate, white
Diffuser: textured opal acrylic
Contus adapter: pre-coated roll form steel, white (similar to RAL9016)

Installation and Mounting

1 or 2 x (3 x 2 x 2.5mm²) terminal blocks with capacity for loop in/out 2.5mm² cables. Ambient temperature: -20 to +25°C for the standard product, 0 to 25°C for the emergency versions, normal, dry, indoor atmospheres. Suitable for direct surface mounting, BESA mounting or wire suspension. Easy alignment through slots in the spine. Optional screws can be added to end caps to lock the housing.
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.


To specify state:
LED batten with a detachable LED engine. Switchable or DALI driver, integral emergency and sensor versions available.
As Thorn PopPack LED

New Product
LumExpress Product
eControl Product

PopPack battens

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
POPPACK LED 11000-840 HF L18007410900PP11000Z6FLED1.8096631570
POPPACK LED 1700-840 HF L600111700LED0.7496634320
POPPACK LED 2300-840 HF L600172300LED0.7496634321
POPPACK LED 3000-830 HF L1200243200PP3000Z4F3KLED1.4096631574
POPPACK LED 3000-840 HF L1200243350PP3000Z4FLED1.3096631538
POPPACK LED 4500-830 HF L1200364450PP4500Z4F3KLED1.4096631575
POPPACK LED 4500-840 HF L1200364650PP4500Z4FLED1.4096631542
POPPACK LED 5000-830 HF L1500364700PP5000Z5F3KLED1.7096631578
POPPACK LED 5000-840 HF L1500364900PP5000Z5FLED1.7096631554
POPPACK LED 6000-830 HF L1500536050PP6000Z5F3KLED1.7096631579
POPPACK LED 6000-840 HF L1500536400PP6000Z5FLED1.7096631558
POPPACK LED 6500-830 HF L1800546450PP6500Z6F3KLED1.8096631580
POPPACK LED 6500-840 HF L1800546800PP6500Z6FLED1.8096631566
POPPACK LED 7000-830 HF L1200526900PP7000Z4F3KLED1.4096631576
POPPACK LED 7000-840 HF L1200527300PP7000Z4FLED1.4096631546
POPPACK LED 9000-840 HF L1500649100PP9000Z5FLED1.7096631562

PopPack battens, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
POPPACK LED 11000-840 HFI L18007410900PP11000D6FLED1.8096631572
POPPACK LED 1700-840 HFI L600111700LED0.8396634322
POPPACK LED 2300-840 HFI L600172300LED0.8396634323
POPPACK LED 3000-840 HFI L1200243350PP3000D4FLED1.4096631540
POPPACK LED 4500-840 HFI L1200364650PP4500D4FLED1.4096631544
POPPACK LED 5000-840 HFI L1500364900PP5000D5FLED1.7096631556
POPPACK LED 6000-840 HFI L1500536400PP6000D5FLED1.7096631560
POPPACK LED 6500-840 HFI L1800546800PP6500D6FLED1.8096631568
POPPACK LED 7000-840 HFI L1200527300PP7000D4FLED1.4096631548
POPPACK LED 9000-840 HFI L1500649100PP9000D5FLED1.7096631564

PopPack battens, emergency

PopPack battens, dimmable, emergency

PopPack battens, with sensor

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
POPPACK LED 11000-840 PIR L18007410900PP11000ZS6FLED1.8096631589
POPPACK LED 3000-840 PIR L1200243350PP3000ZS4FLED1.4096631581
POPPACK LED 4500-840 PIR L1200364650PP4500ZS4FLED1.4096631582
POPPACK LED 5000-840 PIR L1500364900PP5000ZS4FLED1.7096631585
POPPACK LED 6000-840 PIR L1500536400PP6000ZS5FLED1.7096631586
POPPACK LED 6500-840 PIR L1800546800PP6500ZS6FLED1.8096631588
POPPACK LED 7000-840 PIR L1200527300PP7000ZS4FLED1.4096631583
POPPACK LED 9000-840 PIR L1500649100PP9000ZS5FLED1.7096631587

PopPack battens, with sensor, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
POPPACK LED 11000 840 PIR E3 L18007410900LED1.7992925258
POPPACK LED 5000 840 PIR E3 L1500364900LED1.6792925246
POPPACK LED 6000 840 PIR E3 L1500536400LED1.6592925247
POPPACK LED 6500 840 PIR E3 L1800546800LED1.8092925253
POPPACK LED 9000 840 PIR E3 L1500649100LED1.6792925252

PopPack accessories
