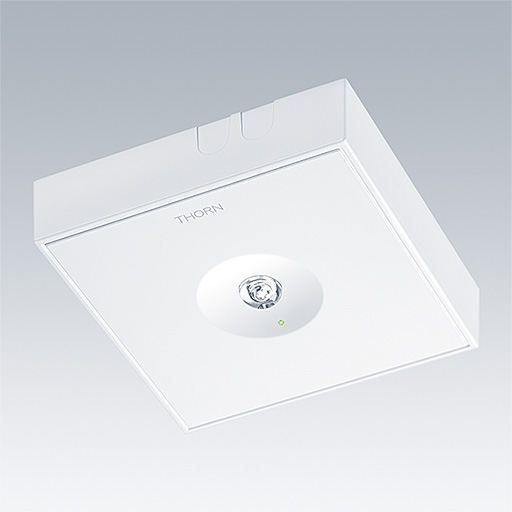

Voyager Star / VOYAGER STAR MSC ANT E3 WH

96548984 / VYLEDAMWS

Data Sheet

High performance, surface mounted LED emergency lighting luminaire, with open area optic.. Housing: aluminium die casting alloy, powder coated white (close to RAL9016). Gear box for mounting in ceiling recess:. IP40,. Reflector and lens:. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Suitable for recessed installation in concrete casting surround (please order separately).. Ceiling cutout Ømm in ceiling thicknesses 1-25mm.

Total power: 4 W
Dimensions: 146 x 146 x 34 mm
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:130 lm
  • Total emergency luminous flux:130 lm
  • Luminaire efficacy*:33 lm/W
  • Lamp efficacy:32 lm/W
  • Rated median useful life*:50000h at 25°C
  • Ballast:1x LED_Con Tridonic
  • Luminaire input power*:4 W Power factor = 0.51
  • Standby Power*:0.9 W
  • Charging power:0.7 W
  • LED
  • CE
  • Halogenfree
  • IP40
  • SC1
