Isaro

  • Isaro
  • Isaro

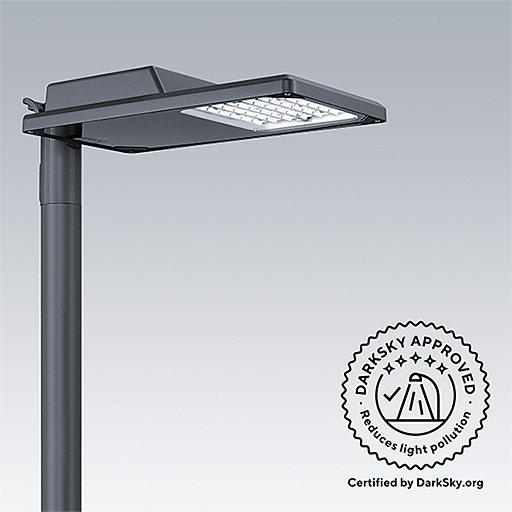

Lanterne routière discrète à haute performance, flexible et pérenne

  • Certifié IDA (International Dark Sky Association)
  • *le label IDA concerne uniquement les luminaires ayant une température de couleur < = 3000 K, et avec une inclinaison maximum de ± 10°. Les luminaires doivent être installés tels que défini par leur photométrie.
  • Conçu pour maximiser les performances d’éclairage et optimiser les stratégies d’économies circulaires, tout en limitant l'empreinte carbone
  • Durable et flexible : matériaux de haute qualité avec un large choix de couleurs, de distributions lumineuses et de systèmes de gestion
  • Protection optimale contre la corrosion, conformément à la norme EN ISO 9223 : compatible avec le bord de mer (Catégorie 5)
  • Poids léger et précâblage selon vos besoins, pour une installation rapide et aisée

Matériaux et finition

- Corps et manchon : fonderie d’aluminium EN AC-44300, finition peinture poudre gris clair Akzo 150 sablé. Autres couleurs possibles: gris anthracite sablé, noir sablé + choix entre 47 teintes RAL
- Fermeture: verre plat trempé ép. 4 à 5 mm
- Visserie: acier inox avec revêtement GEOMET® 500
Classe de corrosion standard C5 conformément à ISO 9223 :2012

Installation et montage

Installation recommandée jusqu’à 10 m de haut
• Montage latéral (-15°/+15°) ou en top (0°/+20°) avec inclinaison réglable par pas de 5° pour optimiser la distribution lumineuse et l’uniformité
• Manchon universel pour une installation latérale ou en top avec le même produit
• Compatible avec les applications côtières de catégorie C5(ISO 9223:2012)
• Précâblage selon différentes longueurs de câble pour une installation rapide sur mât avec emmanchement Ø 60mm. Option de précâblage en sortie de luminaire avec connecteur rapide IP67, lorsque le câble d'origine doit être conservé.

Prescription

To specify state:
IP66, 2 sizes, corrosion resistant Class 5 (EN ISO 9223) road lighting lantern with great versatility for even coastal applications. With up to 6000 Llm (Extra Small size) and 17000 Lm (Small size), efficiency up to 189 Llm/W. Optimised dimensions, low windage area : 0,028 m² (XS size) and 0,041 m² (S size). Extra White toughened glass underneath (4mm thickness as standard). Option for High Transmission glass (H). IK possibilities : IK08 and IK10 (option). Electrical class 1 and class 2. Mounting options : post top, lateral. Wide optical offer with efficient Street R-PEC optical system, 20 R-PEC light distributions. 2200 K / 2400 K / 2700 K / 3000 K /4000 K / 5700 K colour temperatures, as standard. CRI 70 or 80. Internal back light control louvre.6 kV multi-pulse and 8 kV (3 pulses) as driver standard protection. Option for 10kV/10kA surge protection multi pulse and 20kV single pulse. Option for LED optic lining (M). Post top reversible spigot pre-assembled for diameter 60mm or 76mm post top mounting and diameter 60mm or 42 mm lateral mounting. Tilting possibilities for lateral (-20°/0°) and for post top (0°/+15°). A large choice of colour painting as standard : Texturized light grey (GY) by default - Texturized black (BK), Texturized anthracite (ANT), 48 other RAL possibilities. Pre-wired according to needs through configurator with lengths of cable from 3 to 16m. Option with quick connector IP67 M/F for refurbishment with existing cables retained.
DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO)/Light Reduction Twin Phases (LRT). Zhaga interface Up (ZU) / N7 Integral Nema socket - 7 pin, both ZD4i certified.
As Thorn Isaro

New Product
LumExpress Product
Produit eControl

Isaro extra small, optique pour route étroite

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
IS XS 12L105-730 NR CL1 WS0.3 M60 GY-S415032LED3.3396636134
IS XS 12L105-730 NR CL2 WS0.3 M60 GY-S415032LED3.1396636152
IS XS 12L25-730 NR CL1 WS0.3 M60 GY-S101426LED3.1096636129
IS XS 12L25-730 NR CL2 WS0.3 M60 GY-S101426LED3.0796636147
IS XS 12L35-730 NR CL1 WS0.3 M60 GY-S141934LED3.1096636130
IS XS 12L35-730 NR CL2 WS0.3 M60 GY-S141934LED3.0796636148
IS XS 12L50-730 NR CL1 WS0.3 M60 GY-S192667LED3.1096636131
IS XS 12L50-730 NR CL2 WS0.3 M60 GY-S192667LED3.1396636149
IS XS 12L70-730 NR CL1 WS0.3 M60 GY-S273586LED3.3396636132
IS XS 12L70-730 NR CL2 WS0.3 M60 GY-S273586LED3.1396636150
IS XS 12L85-730 NR CL1 WS0.3 M60 GY-S334232LED3.3396636133
IS XS 12L85-730 NR CL2 WS0.3 M60 GY-S334232LED3.1396636151
IS XS 24L25-730 NR CL1 WS0.3 M60 GY-S192824LED3.3096636340
IS XS 24L25-730 NR CL2 WS0.3 M60 GY-S192824LED3.2796636336
IS XS 24L35-730 NR CL1 WS0.3 M60 GY-S263821LED3.3096636341
IS XS 24L35-730 NR CL2 WS0.3 M60 GY-S263821LED3.2796636337
IS XS 24L50-730 NR CL1 WS0.3 M60 GY-S365250LED3.3096636342
IS XS 24L50-730 NR CL2 WS0.3 M60 GY-S365250LED3.2796636338
IS XS 24L70-730 NR CL1 WS0.3 M60 GY-S517018LED3.3096636343
IS XS 24L70-730 NR CL2 WS0.3 M60 GY-S517018LED3.2796636339

Isaro small, optique pour route étroite

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
IS S 24L105-730 NR CL1 WS0.3 M60 GY-S7910344LED4.0696636140
IS S 24L105-730 NR CL2 WS0.3 M60 GY-S7910344LED4.0396636158
IS S 24L25-730 NR CL1 WS0.3 M60 GY-S192960LED4.0396636135
IS S 24L25-730 NR CL2 WS0.3 M60 GY-S192960LED4.0096636153
IS S 24L35-730 NR CL1 WS0.3 M60 GY-S264012LED4.0396636136
IS S 24L35-730 NR CL2 WS0.3 M60 GY-S264012LED4.0096636154
IS S 24L50-730 NR CL1 WS0.3 M60 GY-S365523LED4.0396636137
IS S 24L50-730 NR CL2 WS0.3 M60 GY-S365523LED4.0096636155
IS S 24L70-730 NR CL1 WS0.3 M60 GY-S527411LED4.0396636138
IS S 24L70-730 NR CL2 WS0.3 M60 GY-S527411LED4.0096636156
IS S 24L85-730 NR CL1 WS0.3 M60 GY-S638727LED4.0696636139
IS S 24L85-730 NR CL2 WS0.3 M60 GY-S638727LED4.0396636157
IS S 36L105-730 NR CL1 WS0.3 M60 GY-S11715349LED4.6096636146
IS S 36L105-730 NR CL2 WS0.3 M60 GY-S11715349LED4.5796636164
IS S 36L25-730 NR CL1 WS0.3 M60 GY-S284431LED4.1096636141
IS S 36L25-730 NR CL2 WS0.3 M60 GY-S284431LED4.0696636159
IS S 36L35-730 NR CL1 WS0.3 M60 GY-S386005LED4.1096636142
IS S 36L35-730 NR CL2 WS0.3 M60 GY-S386005LED4.0696636160
IS S 36L50-730 NR CL1 WS0.3 M60 GY-S548261LED4.3796636143
IS S 36L50-730 NR CL2 WS0.3 M60 GY-S548261LED4.3496636161
IS S 36L70-730 NR CL1 WS0.3 M60 GY-S7611061LED4.3796636144
IS S 36L70-730 NR CL2 WS0.3 M60 GY-S7611061LED4.3496636162
IS S 36L85-730 NR CL1 WS0.3 M60 GY-S9412992LED4.6096636145
IS S 36L85-730 NR CL2 WS0.3 M60 GY-S9412992LED4.5796636163
