EyeKon LED / EYE HA LED400-840 MWS E3 S ANT

96665853 / EYS4ZMEH4K

Data Sheet

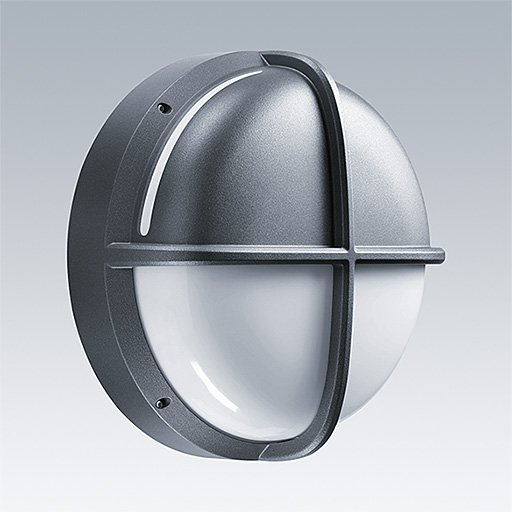

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear with 3 hour, manual test, emergency lighting circuit. Class I electrical, IP65, IK10. Body: small size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium halo-visor feature. Electrical connection via 4 x 2 x 2.5mm² terminal block. With integral motion sensor for on/off control. Complete with 4000K LED

Dimensions: Ø285 x 150 mm
Luminaire input power: 7 W
Weight: 2.9 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:435 lm
  • Total emergency luminous flux:75 lm
  • Luminaire efficacy*:62 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28000704 LC 10W 150-400mA flexC SC EXC
  • Ballast 2:1 x 89899858 DRV EM TR LBS P MT NO 1W 1#Screw
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:7 W
  • Charging power:4 W
  • Dimming:FO
  • LED
  • CE
  • EN 55015
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • SC1
  • Ta = 0 to +25
