  • Cesar Jazz — CESAR JAZZ 2W U/D 1L 940NWB HF BK

Cesar Jazz / CESAR JAZZ 2W U/D 1L 940NWB HF BK

96700231

▼ Data Sheet

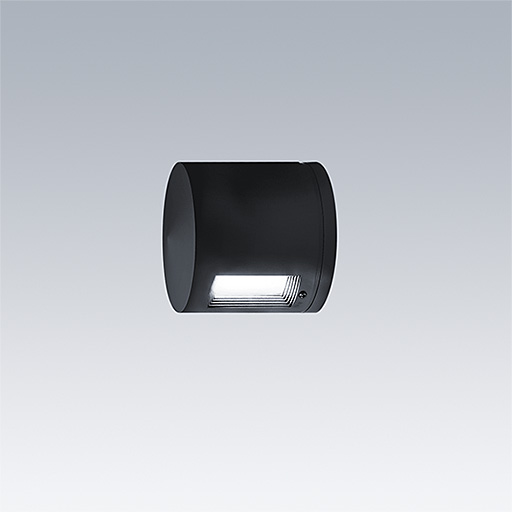

Cesar Jazz, 2 windows a wall mounted, architectural LED luminaire for decorative facade lighting, 2 windows, narrow beam up and wide beam down distribution. Fixed output LED driver. Class I electrical, IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated black. Working ambient temperature: -20°C to +40°C. Complete with 4000K LED.

Dimensions: Ø180 x 180 mm
Luminaire input power: 18.1 W
Luminaire luminous flux: 367 lm
Luminaire efficacy: 20 lm/W
Weight: 3.36 kg
weight: 3.36 kg

Mode selection
    • CE
    • IK10
    • IP65
    • SC1

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
