  • Cesar Amp Wall — CESAR AMP S U/D 2L927WB HF WH

Cesar Amp Wall / CESAR AMP S U/D 2L927WB HF WH

96700046

▼ Data Sheet

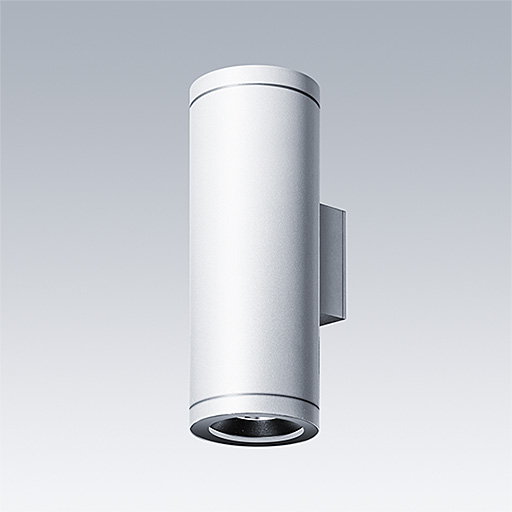

Cesar Amp Wall, small up&down a wall mounted, architectural LED luminaire for decorative facade lighting, wide beam distribution. Fixed output LED driver. Class I electrical, IP65, Impact strength: IK08. Housing: die-cast aluminium, powder coated white. Working ambient temperature: -20°C to +40°C. Complete with 2700K LED.

Dimensions: Ø90 x 250 mm
Luminaire input power: 15.3 W
Luminaire luminous flux: 860 lm
Luminaire efficacy: 56 lm/W
Weight: 2.22 kg
weight: 2.22 kg

Mode selection
    • CE
    • IK08
    • IP65
    • SC1

    ▼ Photometry

    Photometric configuration
