  • Cesar Amp Wall — CESAR AMP S DWN 1L927WB RD ANT

Cesar Amp Wall / CESAR AMP S DWN 1L927WB RD ANT

96701189

▼ Data Sheet

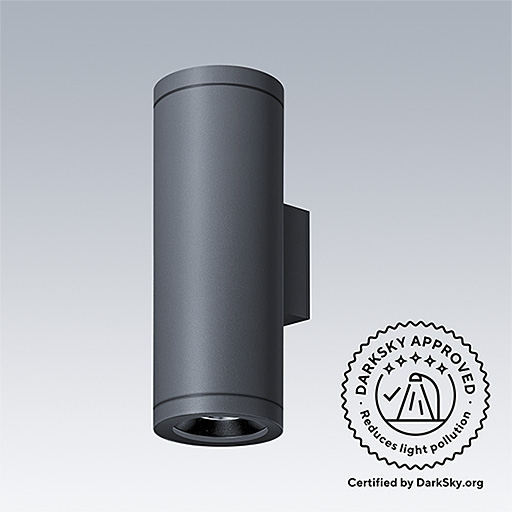

Cesar Amp Wall, small down a wall mounted, architectural LED luminaire for decorative facade lighting, wide beam distribution. DALI-2 dimmable Remote LED driver. Class III electrical, IP65, Impact strength: IK08. Housing: die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.

Dimensions: Ø90 x 250 mm
Luminaire input power: 8.8 W
Luminaire luminous flux: 430 lm
Luminaire efficacy: 49 lm/W
Weight: 1.81 kg
weight: 1.81 kg

Mode selection
    • CE
    • IDA
    • IK08
    • IP65
    • SC3

    ▼ Photometry

    Photometric configuration
