  • Axyl Greet W — AXYL GREETW M DWN 28L 927 WB RD ANT

Axyl Greet W / AXYL GREETW M DWN 28L 927 WB RD ANT

96701623

▼ Data Sheet

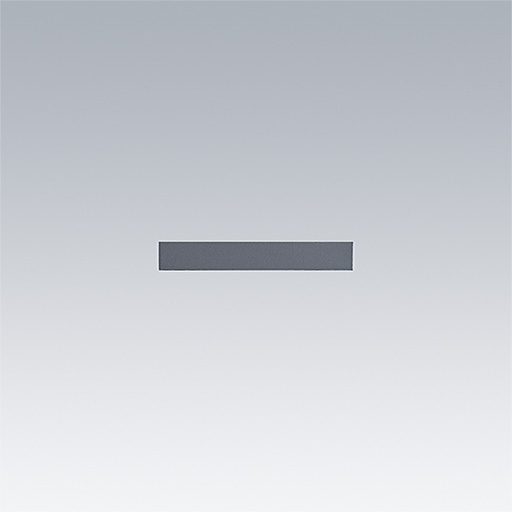

AXYL Greet W, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 220 x 80 x 33 mm
Luminaire input power: 8.6 W
Luminaire luminous flux: 672 lm
Luminaire efficacy: 78 lm/W
Weight: 0.87 kg

Mode selection
    • CE
    • IDA
    • IK06
    • IP65
    • SC3

    ▼ Photometry

    Photometric configuration
