  • Cesar Opera, walk over — CESAR OPERA M WO 1L 940 WB RD BK

Cesar Opera, walk over / CESAR OPERA M WO 1L 940 WB RD BK

96701673

▼ Data Sheet

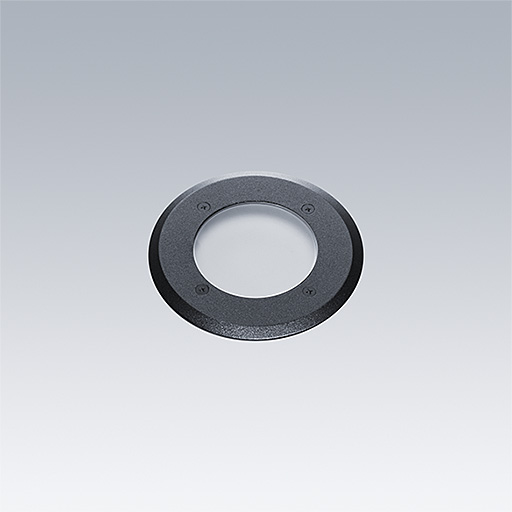

Cesar Opera, walk over a floor recessed, architectural LED luminaire for decorative facade lighting, wide beam distribution. DALI-2 dimmable Remote LED driver. Class III electrical, IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated black. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED.

Dimensions: Ø165 x 135 mm
Luminaire input power: 3 W
Luminaire luminous flux: 33 lm
Luminaire efficacy: 11 lm/W
Weight: 1.23 kg
weight: 1.23 kg

Mode selection
    • CE
    • IK09
    • IP67
    • SC3

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
