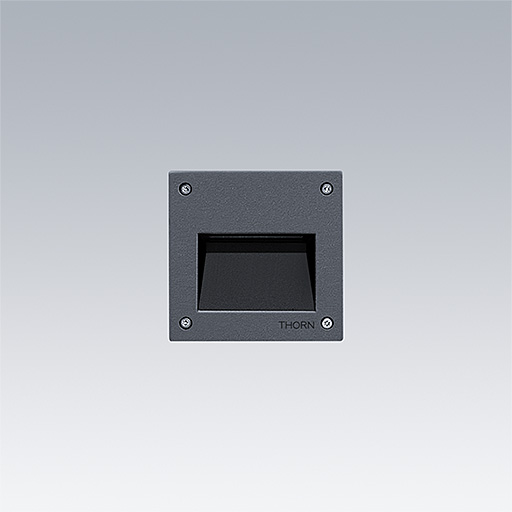

Axyl Trim / AXYL TRIM S BAFF 1L927 A/S RD ANT

Axyl Trim, baffle facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical. DALI-2 dimmable Remote LED driver. Recessed box 96700399 to be order separately, IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED Recessed box 96700399 to be order separately.

Operate with 96700029 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to six luminaire(s).
Maximum operating current : 350mA.
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: 106 x 106 x 98 mm
Luminaire input power: 3.4 W
Luminaire luminous flux: 35 lm
Luminaire efficacy: 10 lm/W
Weight: 0.6 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:35 lm
• Luminaire efficacy*:10 lm/W
• Colour Rendering Index min.:90
• Correlated colour temperature*:2700 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated useful life (B10)*:L80 70000 h at 25 °C
• Ballast:0x LED_DRV
• Luminaire input power*:3.4 W Power factor = 0.4
• Dimming:Dali2Dim
