  • Axyl Opera — AXYL OPERA S WO 1L 927 NB RD WH

Axyl Opera / AXYL OPERA S WO 1L 927 NB RD WH

96701704

▼ Data Sheet

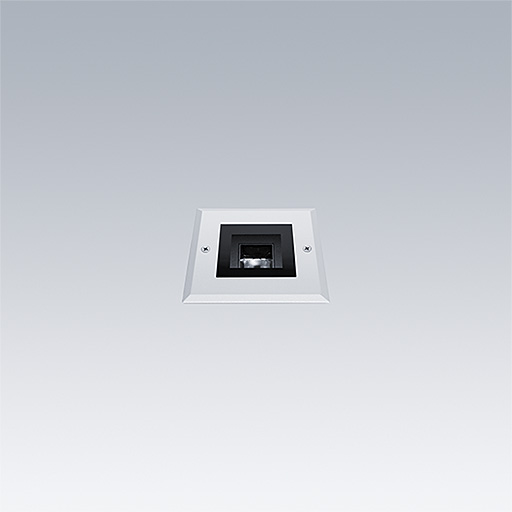

AXYL Opera, a floor recessed, architectural LED luminaire for decorative facade lighting, with narrow beam distribution. Class III electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +45°C. Complete with 2700K LED..

Dimensions: 85 x 85 x 125 mm
Luminaire input power: 3.6 W
Luminaire luminous flux: 160 lm
Luminaire efficacy: 44 lm/W
Weight: 0.77 kg

Mode selection
    • CE
    • IK09
    • IP67
    • SC3

    ▼ Photometry

    Photometric configuration
