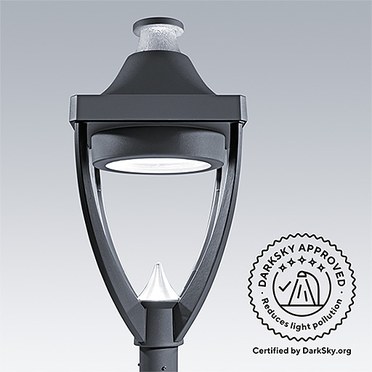

A modern heritage post-top or suspended lantern upgraded with high performance light engines

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered. Models without illuminated top cap only.
  • Beautiful aesthetics with the post top and suspended versions now almost identical for consistency
  • Available with LEDs (3800/5000lm) for retrofits and more CPO versions
  • Compatible with Bi power, DALI and Telea, providing advanced dimming and control to reduce energy consumption
  • The post top lantern is now D60 as standard and available with or without an illuminated top cap

Materials and Finish

Body: die-cast aluminium (EN AC-44300), powder coated grey 900 textured finish (cloase to RAL 7043)
Enclosure: flat toughened glass
Reflector: highly reflective anodised aluminium
Standard corrosion class C5 according to ISO 9223: 2012.

Installation and Mounting

Post-top mounted (MTP) version on shaft through 3xM8 stainless steel screws on poles with D60mm x 100mm spigot. Suspended (MSU) version fixed through with a 34G threaded tube. Recommended mounting heights: 4 to 6m.

Specification

To specify state:
Post-top or suspended 4 arm lantern in die-cast aluminium painted in dark grey, flat toughened glass, with aluminium reflector embodied in an IP65 compartment. Decorative light emission on the top of the lantern / ULOR 0.
As Thorn Legend.

New Product
LumExpress Product
eControl Product

Legend Suspended, LED

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
LEGEND 36L50 RC 730 BP CL1 MSU 34G556732LG3K58B8LED16.5096262559
LEGEND 36L50 RC 730 BP PM CL1 MSU 34G556732LG3K58B8MLED16.5096262561
LEGEND 36L50 RC 730 CL1 MSU 34G556732LG3K58LED16.5096262557
LEGEND 36L50 RC 740 BP CL1 MSU 34G557384LG4K58B8LED16.5096262558
LEGEND 36L50 RC 740 BP PM CL1 MSU 34G557384LG4K58B8MLED16.5096262560
LEGEND 36L50 RC 740 CL1 MSU 34G557384LG4K58LED16.5096262556
LEGEND 36L70 RC 730 BP CL1 MSU 34G778914LG3K84B8LED16.5096262565
LEGEND 36L70 RC 730 BP PM CL1 MSU 34G778914LG3K84B8MLED16.5096262567
LEGEND 36L70 RC 730 CL1 MSU 34G778914LG3K84LED16.5096262563
LEGEND 36L70 RC 740 BP CL1 MSU 34G779777LG4K84B8LED16.5096262564
LEGEND 36L70 RC 740 BP PM CL1 MSU 34G779777LG4K84B8MLED16.5096262566
LEGEND 36L70 RC 740 CL1 MSU 34G779777LG4K84LED16.5096262562

Legend Post top, closed optic, LED

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
LEGEND 36L50 RC 730 BP CL1 T60556732LG3K58B8PTLED17.5096262576
LEGEND 36L50 RC 730 BP PM CL1 T60556732LG3K58B8MPTLED17.5096262578
LEGEND 36L50 RC 740 BP CL1 T60557384LG4K58B8PTLED17.5096262577
LEGEND 36L50 RC 740 BP PM CL1 T60557384LG4K58B8MPTLED17.5096262579
LEGEND 36L70 RC 730 BP CL1 T60778914LG3K84B8PTLED17.5096262580
LEGEND 36L70 RC 730 BP PM CL1 T60778914LG3K84B8MPTLED17.5096262582
LEGEND 36L70 RC 740 BP CL1 T60779777LG4K84B8PTLED17.5096262581
LEGEND 36L70 RC 740 BP PM CL1 T60779777LG4K84B8MPTLED17.5096262583

Legend LED retrofits, closed optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
LEGEND GT LED 36L50 RC 730 BP CL1556732LG3K58GTBPLED3.1096262736
LEGEND GT LED 36L50 RC 730 CL1556732LG3K58GTLED3.1096262732
LEGEND GT LED 36L50 RC 740 BP CL1557384LG4K58GTBPLED3.1096262735
LEGEND GT LED 36L50 RC 740 CL1557384LG4K58GTLED3.1096262731
LEGEND GT LED 36L70 RC 730 BP CL1778914LG3K84GTBPLED3.1096262738
LEGEND GT LED 36L70 RC 730 CL1778914LG3K84GTLED3.1096262734
LEGEND GT LED 36L70 RC 740 BP CL1779777LG4K84GTBPLED3.1096262737
LEGEND GT LED 36L70 RC 740 CL1779777LG4K84GTLED3.1096262733
