Contrast / CONT3 36L105-722-840 NB HFX SP ANT

96633529

Change configuration

  • Base: 96633529 — CONT3 36L105-722-840 NB HFX SP ANT

Data Sheet

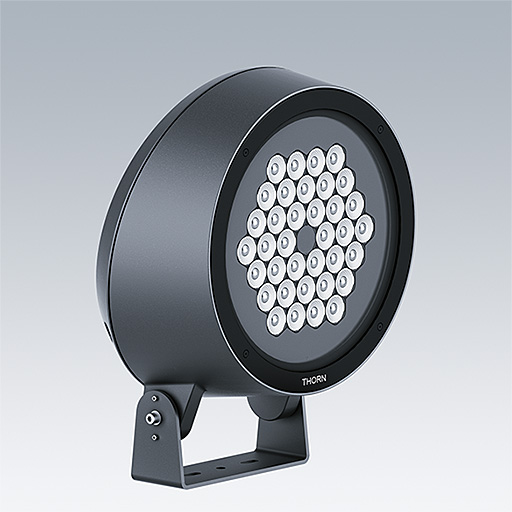

A large architectural Bracket mounted LED floodlight with 36 LEDs driven at 1050mA and a narrow beam distribution. LED driver, DALI-2 dimmable. Class II electrical (this product is not earthed), IP66, IK08. Body: die-cast aluminium (EN AC-44300), powder coated, textured anthracite (close to RAL7043). Compatible with coastal environments. Glass: tempered, 5mm thick. Gasket: EPDM. Screws: geomet. Equipped with 10kV / 10kA surge protection device. Complete with 2200-4000K balanced white LEDs

,

Dimensions: Ø397 x 206 mm
Luminaire input power: 118 W
Luminaire luminous flux: 11427 lm
Luminaire efficacy: 97 lm/W
Weight: 13.2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:11427 lm
  • Luminaire efficacy*:97 lm/W
  • Lamp efficacy:96 lm/W
  • Ballast:2 x 87500885 DRV TR LCO 60W 1.05A 100V D #EXC3 VAR
  • Correlated colour temperature:0 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000h at 25°C
  • Luminaire input power*:118 W
  • Dimming:Dali2Dim
  • LED
  • CE
  • IK08
  • IP66
  • Coastal_C5
  • SC2
  • Ta = -20 to +35
